AS-4124GS-TNR

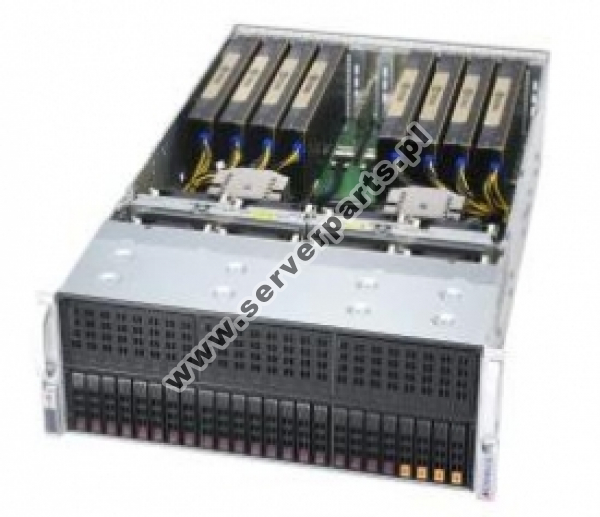

Server Supermicro AS -4124GS-TNR • 418GTS-R4016BP • H12DSG-O-CPU • 4U IPMI NVMe
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 4 885.62
Gross: $ 6 009.31
Availability: EOL
Manufacturer: Supermicro
Part number: AS-4124GS-TNR
Warehouse product ID: 719230
Availability*: PL: NoneNL: 1 pcs. (estimated delivery time from 4 to 10 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 6.97 net ($ 8.57 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
Kluczowe cechy / Key features :
1. Supports up to 10 double-width GPUs, Direct connect for maximum performance
2. Dual AMD EPYC™ 7002 Series Processors
3. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
4. 9 PCI-E 4.0 x16, (Option: 10 PCI-E 4.0 x16 slots without NVMe devices)
5. Up to 24 Hot-swap 2.5" drive bays;
4x 2.5" SATA drives and 4x 2.5" NVMe drives supported with included H/W*, (*Depends on PCI-E quantity based on #4)
6. 2 GbE LAN ports (rear)
7. 8 Hot-swap 11.5K RPM cooling fans
8. 2000W (2+2) Redundant Power Supplies, Titanium Level, (full redundancy based on configuration and application load)
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | AS-4124GS-TNR | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| Power type | AC | ||||||||
| GPU Info | 4x16 GPUs mapped to CPU 0, 4x16 GPUs mapped to CPU 1 | ||||||||
| Supported GPU/Cards | NVIDIA PNY Quadro M4000 8GB, NVIDIA QUADRO P400 | ||||||||
| Chassis | |||||||||
| Product name | 418GTS-R4016BP | ||||||||
| Basic informations | |||||||||
| U size | 4U | ||||||||
| Expansion slots # | 11 | ||||||||
| Power Supply | |||||||||
| Redundant power supply | Yes | ||||||||
| Power supply power | 2000 W | ||||||||
| Power supply type | AC | ||||||||
| Drives | |||||||||
| Hot-Swap | Yes | ||||||||
| Max. drives # | 24 | ||||||||
| 3,5" drives support | No | ||||||||
| 2,5" drives support | Yes | ||||||||
| SATA support | Yes | ||||||||
| SAS support | Yes | ||||||||
| CD/DVD drive installation possibility | No | ||||||||
| SAS controller required | No | ||||||||
| Motherboard | |||||||||
| Product name | H12DSG-O-CPU | ||||||||
| Basic informations | |||||||||
| Chipset | SoC | ||||||||
| Expansion slots # | 20 | ||||||||
| Processor | |||||||||
| CPU socket | SP3 | ||||||||
| CPU family | AMD EPYC 7001/7002/7003 SP3 4094 | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 2 | ||||||||
| System Memory | |||||||||
| Max. memory size support | 8000 GB | ||||||||
| Memory sockets # | 32 | ||||||||
| Memory correction support | EC | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR4 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 4 | ||||||||
| SAS support | Yes | ||||||||
| SAS sockets # | 8 | ||||||||
| SAS type | SAS2 | ||||||||
| NVMe support | Yes | ||||||||
| IPMI | Yes | ||||||||
| VGA | Yes | ||||||||
