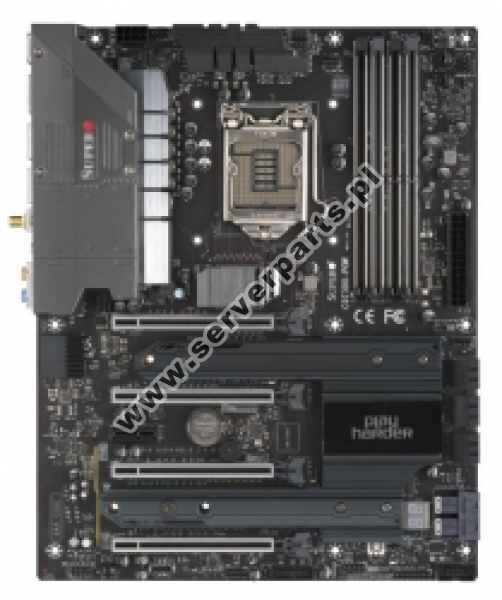

C9Z390-PGW
Motherboard Supermicro MBD-C9Z390-PGW Z390 LGA1151 Intel Core 8th i9 i7 i5 i3 LGA1151 SATA M.2 DDR4
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 332.77
Gross: $ 409.31
Availability: EOL
Manufacturer: Supermicro
Part number: C9Z390-PGW
Warehouse product ID: 454294
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042330065
HS: 8473 30 20 00
ECCN: 5A992C
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 6.97 net ($ 8.57 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
Kluczowe cechy / Key features :
1. Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket LGA 1151 supported, CPU TDP support Up to 140W
2. Intel® Z390 Express
3. Up to 64GB Unbuffered non-ECC UDIMM, DDR4-4000MHz (O.C), in 4 DIMM slots
4. 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 8/8/8/8), 1 PCI-E 3.0 x1 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
M.2 Form Factor: 2260/2280/22110, 2260/2280, 2230, M.2 Key: M-Key, M-Key, E-Key (RAID 0,1 support)
M.2-M1 port shares PCI-E link with U2-1 port;M.2-M2 port shares link with SATA port4 and port5; M.2-E1 port pre-installed one 802.1ac WiFi+BT5.0 module, U.2 Interface: 2 PCI-E 3.0 x4 and PCI-E 3.0 x4
5. 2 DP (DisplayPort) ports, 1 HDMI port, Display port up to 1.2, HDMI up to 2.0
6. Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Single LAN with Intel® single Ethernet PHY i219V, Single LAN with Aquantia® AQC107 10G Ethernet Controller
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||
|---|---|---|---|---|---|
| SKU | MBD-C9Z390-PGW | ||||
| Basic informations | |||||
| Chipset | Z390 | ||||
| Format | ATX | ||||
| Size | 12" x 9.6" | ||||
| Expansion slots # | 5 | ||||
| Processor | |||||
| CPU socket | LGA1151 | ||||
| CPU family | Intel Core 8th i9 i7 i5 i3 LGA1151 | ||||
| CPU builtin | No | ||||
| Max. CPU # | 1 | ||||
| SNK shape | Standard | ||||
| System Memory | |||||
| Max. memory size support | 64 GB | ||||
| Memory sockets # | 4 | ||||
| Memory correction support | UN | ||||
| Memory size type support | DIMM | ||||
| Memory type support | DDR4 | ||||
| On-Board Devices | |||||
| SATA support | Yes | ||||
| SATA sockets # | 6 | ||||
| SAS support | No | ||||
| NVMe support | No | ||||
| M.2 support | Yes | ||||
| M.2 sockets # | 4 | ||||
| NIC # | 1 | ||||
| NIC chipset/type |
|
||||
| Hardaware RAID | No | ||||
| IPMI | No | ||||
| VGA | No | ||||
| Other | |||||
| Supported RSC | N/D | ||||
| Application | High-efficiency, Cost-effective | ||||
| Power consumption | 140 W | ||||
