E200-8B

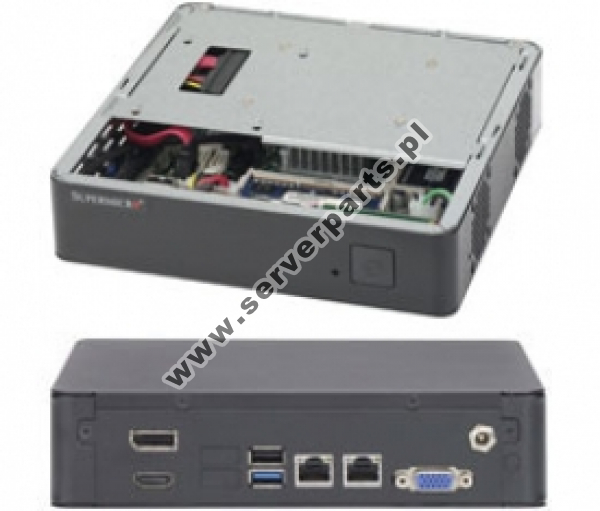

IoT Gateway Supermicro SYS-E200-8B • CSE-101S • X10SBA
Net: $ 323.14
Gross: $ 397.46
Manufacturer: Supermicro
Part number: E200-8B
Warehouse product ID: 4808
Size of the package (LxWxH): 39cm x 28cm x 15cm
UPC/EAN: 672042173679
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.00 net ($ 8.60 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
Kluczowe cechy / Key features:
- Compact Embedded System
- Long Life Cycle Support
- Digital Signage, Indoor Kiosk
1. Single socket FCBGA1170 supports Intel® Celeron™ J1900 (10W, 4C)
2. Intel® Silvermont microarchitecture 22nm System-on-Chip
3. 1x 2.5" internal drive bay
4. Up to 8GB 1333MHz DDR3 Non-ECC SO-DIMM in 2 socket
5. 1x Mini-PCIe and 1x mSATA slot, 2x SATA 2.0, 4x SATA 3.0 (RAID 0, 1, 10)
6. I/O ports: 2x GbE, 1x HDMI, 1x Display Port, 1x VGA
7. 1x USB 3.0 and 1x USB 2.0 ports
8. 1x 4cm high performance PWM fan
9. 1x SATA DOM support
10. 60W DC power adapter
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | SYS-E200-8B | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| Dimensions (HxWxD) | 1.7"x7.68"x7.68" (43mm x 195mm x 195mm) | ||||||||
| Power Supply | 60W DC | ||||||||
| Memory support limit | 8GB DDR3 | ||||||||
| Slots for disks | 1x2.5" | ||||||||
| Motherboard | |||||||||
| Product name | X10SBA | ||||||||
| More info at manufacturer site | Click here to view Broken link? Report us. | ||||||||
| Basic informations | |||||||||
| Chipset | SoC | ||||||||
| Format | Mini-ITX | ||||||||
| Size | 6.75" x 6.75" | ||||||||
| Expansion slots # | 1 | ||||||||
| Processor | |||||||||
| CPU socket | BGA1170 | ||||||||
| CPU family | Intel Celeron J1900 FCBGA1170 | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 1 | ||||||||
| SNK shape | Standard | ||||||||
| System Memory | |||||||||
| Max. memory size support | 8 GB | ||||||||
| Memory sockets # | 2 | ||||||||
| Memory correction support | NON-ECC | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR3 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 6 | ||||||||
| SAS support | No | ||||||||
| NIC # | 2 | ||||||||
| NIC chipset/type |
|
||||||||
| Hardaware RAID | No | ||||||||
| IPMI | No | ||||||||
| VGA | No | ||||||||
| Other | |||||||||
| Supported RSC | N/D | ||||||||
| Application | High-efficiency | ||||||||
| Power consumption | 8 W | ||||||||
Product description errors? Please let us know.
