F414IS4-R2K20BP

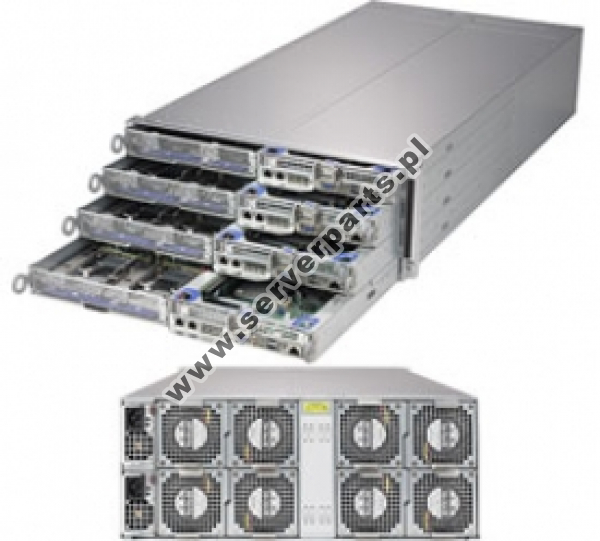

Chassis Supermicro CSE-F414IS4-R2K20BP 4U 2200W Redundant 12xHDD SATA
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Kluczowe cechy / Key features :
1. Dual Socket P (LGA 3647) support, 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
2. 12 DIMMs; up to 3TB 3DS ECC, DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
3. 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP) 1 PCI-E 3.0 x16 (for SIOM )
4. 12 Fixed 3.5" SATA3 drive bays, M.2 Interface: 2 SATA/PCI-E 3.0 x4, M.2 Form Factor: 2260/2280/22110
M.2 Key: M-Key
5. Networking via SIOM Network card, 1 dedicated IPMI LAN port (front)
6. 1 VGA, 2 USB 3.0 ports (front)
7. 8x 8cm rear fans per chassis per enclosure
8. 2200W Dual Power Supplies Titanium Level (96% Efficiency)
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro |
|---|---|
| SKU | CSE-F414IS4-R2K20BP |
| Basic informations | |
| U size | 4U |
| Expansion slots # | 3 |
| Motherboard formats support | Proprietary FatTwin |
| Motherboard sizes support | 8.441" x 18.724" |
| Power Supply | |
| Redundant power supply | Yes |
| Power supply power | 2200 W |
| Power supply type | AC |
| Drives | |
| Hot-Swap | No |
| Max. drives # | 12 |
| 3,5" drives support | Yes |
| 2,5" drives support | No |
| SATA support | Yes |
| SAS support | No |
| CD/DVD drive installation possibility | No |
| SAS controller required | No |
| Other | |
| Application | High-efficiency, Cost-effective |
Product description errors? Please let us know.
