H12SSL-I-O

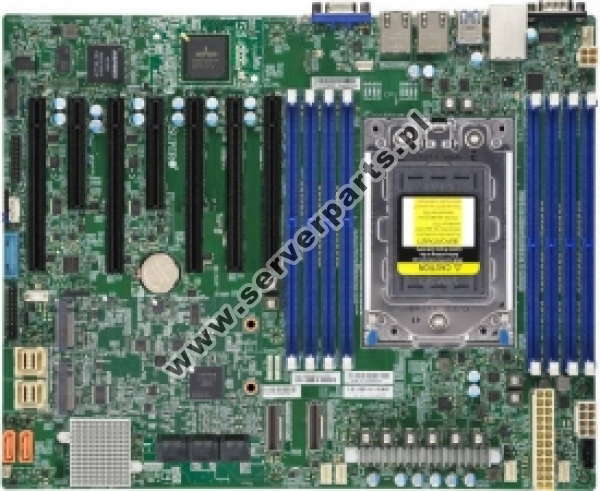

Motherboard Supermicro MBD-H12SSL-I-O SoC SP3 AMD EPYC 7001/7002/7003 SP3 4094 SATA/SAS M.2 DDR4 IPMI
Net: $ 462.24
Gross: $ 568.56
Manufacturer: Supermicro
Part number: H12SSL-I-O
Warehouse product ID: 705577
HS: 8473 30 20 00
ECCN: 5A992C
Availability*: PL: NoneNL: 102 pcs. (estimated delivery time from 4 to 10 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.06 net ($ 8.69 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
Kluczowe cechy / Key features :
1. Single AMD EPYC™ 7002 Series Processor
2. 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
3. Expansion slots: 5 PCI-E 4.0 x16, 2 PCI-E 4.0 x8, M.2 Interface: 2 PCI-E 4.0 x4, M.2 Form Factor: 2280, 22110, M.2 Key: M-key
4. 8 SATA3, 2 M.2,
8 SATA3 or 2 NVMe via single SlimSAS x8
5. 2 Gigabit Ethernet LAN Ports
6. ASPEED AST2500 BMC graphics
7. Up to 6 USB 3.0 ports, (4 rear + 2 via header)
8. 7 PWM 4-pin Fans with tachometer status monitoring
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
Manufacturer | Supermicro | ||||||
---|---|---|---|---|---|---|---|
SKU | MBD-H12SSL-I-O | ||||||
Basic informations | |||||||
Chipset | SoC | ||||||
Format | ATX | ||||||
Size | 12" x 9.6" | ||||||
Expansion slots # | 7 | ||||||
Processor | |||||||
CPU socket | SP3 | ||||||
CPU family | AMD EPYC 7001/7002/7003 SP3 4094 | ||||||
CPU builtin | No | ||||||
Max. CPU # | 1 | ||||||
SNK shape | Standard | ||||||
System Memory | |||||||
Max. memory size support | 2048 GB | ||||||
Memory sockets # | 8 | ||||||
Memory correction support | ER | ||||||
Memory size type support | DIMM | ||||||
Memory type support | DDR4 | ||||||
On-Board Devices | |||||||
SATA support | Yes | ||||||
SATA sockets # | 8 | ||||||
SAS support | Yes | ||||||
SAS sockets # | 8 | ||||||
SAS type | SAS3 | ||||||
NVMe support | No | ||||||
M.2 support | Yes | ||||||
M.2 sockets # | 2 | ||||||
NIC # | 2 | ||||||
NIC chipset/type |
|
||||||
Hardaware RAID | No | ||||||
IPMI | Yes | ||||||
VGA | Yes | ||||||
Other | |||||||
Supported RSC | N/D | ||||||
Application | High-efficiency, Cost-effective | ||||||
Power consumption | 100 W |
