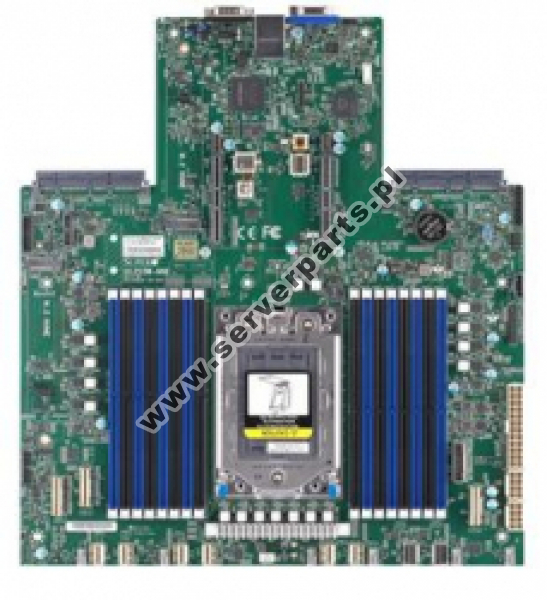

H12SSW-AN6
Motherboard Supermicro MBD-H12SSW-AN6 SoC SP3 AMD EPYC 7001/7002/7003 SP3 4094 SATA NVMe M.2 DDR4 IPMI
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Kluczowe cechy / Key features :
1. Single AMD EPYC™ 7003/7002 Series Processor,(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
2. 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
3. Expansion slots: 1 PCI-E 4.0 x16 Left Riser Slot,1 PCI-E 4.0 x16 Right Riser Slot, M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110, M.2 Key: M-key, 2 PCI-E 4.0 x16 AIOM networking slots
4. 12 Native NVMe via SlimSAS,8 SATA3 or 2 NVMe via single SlimSAS x8, 8 SATA3 or 2 NVMe via dual SlimSAS x4, 2 M.2
5. Flexible networking via AIOM, 1 dedicated IPMI LAN Port
6. ASPEED AST2600 BMC graphics
7. 2 USB 3.0 ports (rear), 2 USB 2.0 ports via header
8. 6x 4-pin PWM Fans & Speed control
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||
|---|---|---|---|---|---|
| SKU | MBD-H12SSW-AN6 | ||||
| Basic informations | |||||
| Chipset | SoC | ||||
| Format | Proprietary | ||||
| Size | 13.4" x 12.29" | ||||
| Expansion slots # | 4 | ||||
| Processor | |||||
| CPU socket | SP3 | ||||
| CPU family | AMD EPYC 7001/7002/7003 SP3 4094 | ||||
| CPU builtin | No | ||||
| Max. CPU # | 1 | ||||
| SNK shape | Standard | ||||
| System Memory | |||||
| Max. memory size support | 256 GB | ||||
| Memory sockets # | 16 | ||||
| Memory correction support | EC | ||||
| Memory size type support | DIMM | ||||
| Memory type support | DDR4 | ||||
| On-Board Devices | |||||
| SATA support | Yes | ||||
| SATA sockets # | 16 | ||||
| SAS support | No | ||||
| NVMe support | Yes | ||||
| NVMe sockets # | 4 | ||||
| M.2 support | Yes | ||||
| M.2 sockets # | 4 | ||||
| NIC # | 1 | ||||
| NIC chipset/type |
|
||||
| Hardaware RAID | No | ||||
| IPMI | Yes | ||||
| VGA | Yes | ||||
| Other | |||||
| Supported RSC | N/D | ||||
| Application | High-efficiency, Cost-effective | ||||
| Power consumption | 100 W | ||||
Product description errors? Please let us know.
