E100-9S-E

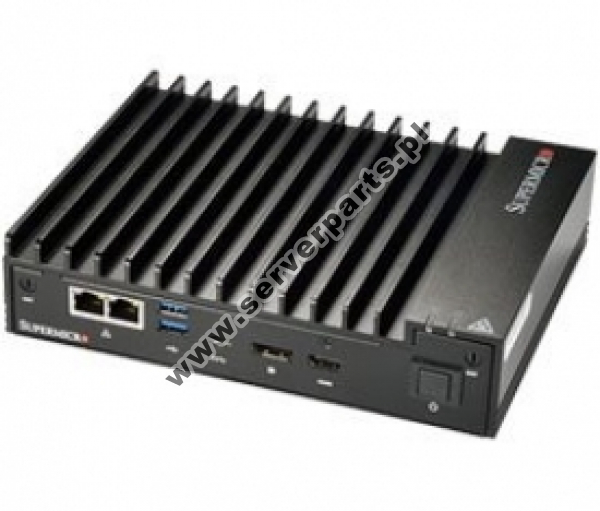

IoT Gateway Supermicro SYS-E100-9S-E • CSE-E101-01 • X11SSN-E-WOHS
Net: $ 747.93
Gross: $ 919.95
Manufacturer: Supermicro
Part number: E100-9S-E
Warehouse product ID: 338391
Size of the package (LxWxH): 39cm x 28cm x 15cm
UPC/EAN: 672042314959
HS: 8471 49 00 00
ECCN: 5A992C
Availability*: PL: NoneNL: 4 pcs. (estimated delivery time from 4 to 10 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.04 net ($ 8.67 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
Kluczowe cechy / Key features:
- IoT Edge Computing
- Kiosk, Interactive info system
- Environmental Monitor
1. 7th Generation Intel® Core™ i5-7300U Processor; Single Socket FCBGA 1356
2. System-on-Chip
3. 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E
4. Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots
5. Dual GbE LAN w/ Intel i219LM + i210IT
6. 4 COM (RS-232/422/485), 2 USB 3.0, 4 USB 2.0, 1 DIO via DB9
7. 1 Display Port, 1 HDMI port
8. Fanless design
9. Lockable 12V DC 60W power adapter
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | SYS-E100-9S-E | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| Dimensions (HxWxD) | 1.73"x7.68"x5.94" (44mm x 195mm x 151mm) | ||||||||
| Power Supply | 60W DC | ||||||||
| Memory support limit | 32GB DDR4 | ||||||||
| Slots for disks | 1xM.2 2280 B-Key | ||||||||
| Motherboard | |||||||||
| Product name | X11SSN-E-WOHS | ||||||||
| More info at manufacturer site | Click here to view Broken link? Report us. | ||||||||
| Basic informations | |||||||||
| Chipset | SoC | ||||||||
| Format | 3.5" SBC | ||||||||
| Size | 5.7" x 4" | ||||||||
| Expansion slots # | 1 | ||||||||
| Processor | |||||||||
| CPU socket | FCBGA1356 | ||||||||
| CPU family | Intel Core i5-7300U FCBGA1356 | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 1 | ||||||||
| SNK shape | Standard | ||||||||
| System Memory | |||||||||
| Max. memory size support | 32 GB | ||||||||
| Memory sockets # | 2 | ||||||||
| Memory correction support | NON-ECC | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR4 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 1 | ||||||||
| SAS support | No | ||||||||
| NIC # | 1 | ||||||||
| NIC chipset/type |
|
||||||||
| Hardaware RAID | No | ||||||||
| IPMI | No | ||||||||
| VGA | No | ||||||||
| Other | |||||||||
| Supported RSC | N/D | ||||||||
| Application | High-efficiency | ||||||||
| Power consumption | 15 W | ||||||||
