E102-9AP-L

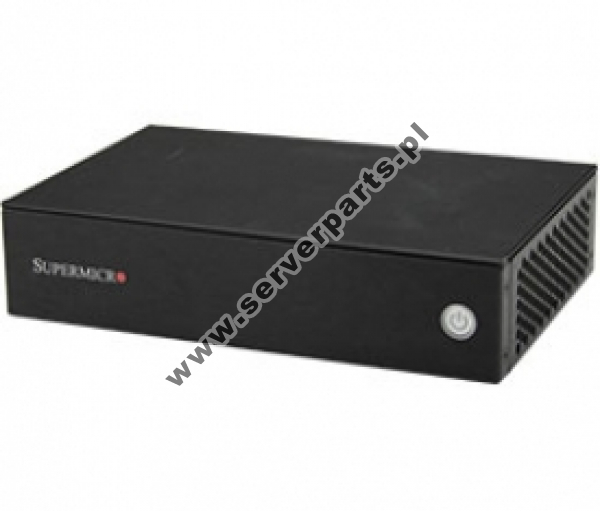

IoT Gateway Supermicro SYS-E102-9AP-L • CSE-E102 • A2SAN-L
Net: $ 286.76
Gross: $ 352.71
Manufacturer: Supermicro
Part number: E102-9AP-L
Warehouse product ID: 370440
Size of the package (LxWxH): 39cm x 28cm x 15cm
UPC/EAN: 672042341160
Availability*: PL: NoneNL: 1 pcs. (estimated delivery time from 4 to 10 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.00 net ($ 8.60 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
Kluczowe cechy / Key features:
- Embedded Applications
1. Intel® Atom® processor E3930 (6.5W, 2C) Single socket FCBGA 1296
2. System on Chip
3. 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E
4. Up to 8GB unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 socket
5. Dual GbE LAN w/ Intel i210IT
6. 4 COM (RS-232/422/485), 2 USB 3.0, 4 USB 2.0
7. 1 VGA port, 1 HDMI port
8. Passive CPU heat sink and 1x 40mm chassis fans
9. Lockable 12V DC 40W power adapter
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | SYS-E102-9AP-L | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| Dimensions (HxWxD) | 1.72"x7.48"x4.72" (44m x 190mm x 120mm) | ||||||||
| Power Supply | 40W DC | ||||||||
| Memory support limit | 8GB DDR3 | ||||||||
| Slots for disks | 1xM.2 2280 B-Key SATA or PCIe SSD | ||||||||
| Motherboard | |||||||||
| Product name | A2SAN-L | ||||||||
| More info at manufacturer site | Click here to view Broken link? Report us. | ||||||||
| Basic informations | |||||||||
| Chipset | SoC | ||||||||
| Format | 3.5" SBC | ||||||||
| Size | 5.7" x 4" | ||||||||
| Expansion slots # | 1 | ||||||||
| Processor | |||||||||
| CPU socket | FCBGA1296 | ||||||||
| CPU family | Intel Atom E3930 FCBGA1296 | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 1 | ||||||||
| SNK shape | Standard | ||||||||
| System Memory | |||||||||
| Max. memory size support | 8 GB | ||||||||
| Memory sockets # | 1 | ||||||||
| Memory correction support | NON-ECC | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR3 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 1 | ||||||||
| SAS support | No | ||||||||
| NIC # | 2 | ||||||||
| NIC chipset/type |
|
||||||||
| Hardaware RAID | No | ||||||||
| IPMI | No | ||||||||
| VGA | Yes | ||||||||
| Other | |||||||||
| Supported RSC | N/D | ||||||||
| Application | High-efficiency | ||||||||
| Power consumption | 6 W | ||||||||
