E300-8D

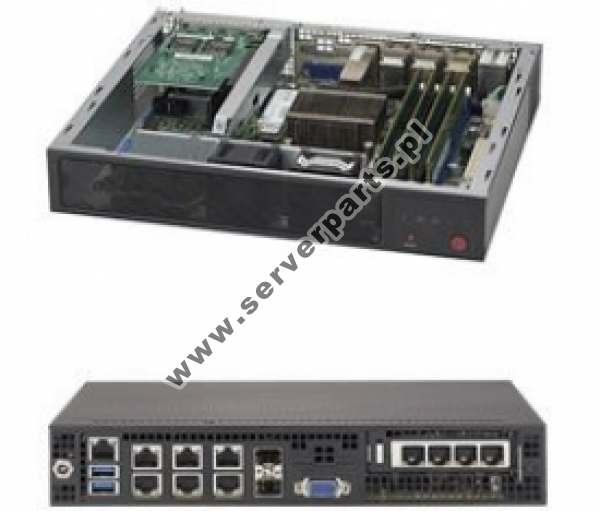

IoT Gateway Supermicro SYS-E300-8D • CSE-E300 • X10SDV-TP8F
Net: $ 727.60
Gross: $ 894.95
Manufacturer: Supermicro
Part number: E300-8D
Warehouse product ID: 87257
Size of the package (LxWxH): 39cm x 28cm x 15cm
UPC/EAN: 672042242344
HS: 8471 49 00 00
ECCN: 5A992C
Availability*: PL: NoneNL: 4 pcs. (estimated delivery time from 4 to 10 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 6.98 net ($ 8.58 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
Kluczowe cechy / Key features:
- Embedded Networking Applications
- Network Security Appliance
- FireWall Applications
- Virtualization Server
1. Intel® Xeon® processor D-1518, Single socket FCBGA 1667; 4-Core, 8 Threads, 35W
2. System on Chip
3. 1x 2.5" fixed drive bay with bracket (when AOC area is not occupied)
4. Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
5. 1 PCI-E 3.0 x8 AOC slot (LP), Mini PCI-E (mSATA support), M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110
6. 2x 10G SFP+, 6 GbE LAN, and
dedicated LAN for IPMI 2.0
7. VGA via BMC, 2 USB 3.0 ports
8. Passive CPU heat sink and
2x 40mm chassis fans
9. DC power adapter
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | SYS-E300-8D | ||||||||||||||||||
| Basic informations | |||||||||||||||||||
| Server content |
|
||||||||||||||||||
| Dimensions (HxWxD) | 1.7"x10"x8.9" (43mm x 254mm x 226mm) | ||||||||||||||||||
| Power Supply | DC | ||||||||||||||||||
| Memory support limit | 128GB DDR4 | ||||||||||||||||||
| Slots for disks | 1x2.5" | ||||||||||||||||||
| Motherboard | |||||||||||||||||||
| Product name | X10SDV-TP8F | ||||||||||||||||||
| More info at manufacturer site | Click here to view Broken link? Report us. | ||||||||||||||||||
| Basic informations | |||||||||||||||||||
| Chipset | System on Chip | ||||||||||||||||||
| Format | Flex-ATX | ||||||||||||||||||
| Size | 9" x 7.2" | ||||||||||||||||||
| Expansion slots # | 2 | ||||||||||||||||||
| Processor | |||||||||||||||||||
| CPU socket | FCBGA1667 | ||||||||||||||||||
| CPU family | Intel Xeon D-1518 FCBGA1667 | ||||||||||||||||||
| CPU builtin | Yes | ||||||||||||||||||
| Max. CPU # | 1 | ||||||||||||||||||
| SNK shape | Square | ||||||||||||||||||
| System Memory | |||||||||||||||||||
| Max. memory size support | 128 GB | ||||||||||||||||||
| Memory sockets # | 4 | ||||||||||||||||||
| Memory correction support | ER | ||||||||||||||||||
| Memory size type support | DIMM | ||||||||||||||||||
| Memory type support | DDR4 | ||||||||||||||||||
| On-Board Devices | |||||||||||||||||||
| SATA support | Yes | ||||||||||||||||||
| SATA sockets # | 4 | ||||||||||||||||||
| SAS support | No | ||||||||||||||||||
| NIC # | 8 | ||||||||||||||||||
| NIC chipset/type |
|
||||||||||||||||||
| Hardaware RAID | No | ||||||||||||||||||
| IPMI | Yes | ||||||||||||||||||
| VGA | Yes | ||||||||||||||||||
| Other | |||||||||||||||||||
| Supported RSC | RSC-RR1U-E8 | ||||||||||||||||||
| Application | Cost-optimized | ||||||||||||||||||
| Power consumption | 35 W | ||||||||||||||||||
