A2SAN-H-WOHS

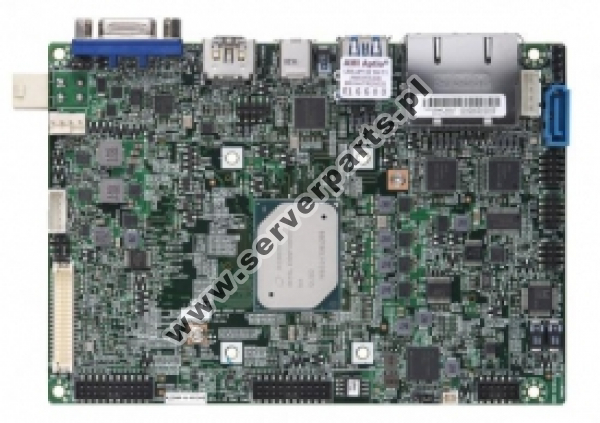

Motherboard Supermicro MBD-A2SAN-H-WOHS SoC FCBGA1296 Intel Atom E3940 FCBGA1296 SATA M.2 DDR3
Net: $ 218.28
Gross: $ 268.48
Manufacturer: Supermicro
Part number: A2SAN-H-WOHS
Warehouse product ID: 251551, 251552
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042312290
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 6.97 net ($ 8.57 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
Kluczowe cechy / Key features :
1. Intel® Atom processor E3940 (9.5W, 4C)
2. Intel® Goldmont microarchitecture 14nm System-on-Chip
3. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
4. Dual GbE LAN with Intel® i210-AT
5. 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E, 1 SATA 3.0
6. 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays
7. 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
8. Supports on board TPM 2.0
9. Supports 12V DC power input
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||
|---|---|---|---|---|---|---|---|
| SKU | MBD-A2SAN-H-WOHS | ||||||
| Basic informations | |||||||
| Chipset | SoC | ||||||
| Format | 3.5" SBC | ||||||
| Size | 5.7" x 4" | ||||||
| Expansion slots # | 2 | ||||||
| Processor | |||||||
| CPU socket | FCBGA1296 | ||||||
| CPU family | Intel Atom E3940 FCBGA1296 | ||||||
| CPU builtin | No | ||||||
| Max. CPU # | 1 | ||||||
| SNK shape | Standard | ||||||
| System Memory | |||||||
| Max. memory size support | 8 GB | ||||||
| Memory sockets # | 0 | ||||||
| Memory correction support | NON-ECC | ||||||
| Memory size type support | DIMM | ||||||
| Memory type support | DDR3 | ||||||
| On-Board Devices | |||||||
| SATA support | Yes | ||||||
| SATA sockets # | 1 | ||||||
| SAS support | No | ||||||
| NVMe support | No | ||||||
| M.2 support | Yes | ||||||
| M.2 sockets # | 1 | ||||||
| NIC # | 2 | ||||||
| NIC chipset/type |
|
||||||
| Hardaware RAID | No | ||||||
| IPMI | No | ||||||
| VGA | Yes | ||||||
| Other | |||||||
| Supported RSC | N/D | ||||||
| Application | High-efficiency, Cost-effective | ||||||
| Power consumption | 10 W | ||||||
