H11SSL-NC

Motherboard Supermicro MBD-H11SSL-NC SoC SP3 AMD EPYC 7001/7002/7003 SP3 4094 SATA/SAS NVMe M.2 DDR4 IPMI

Supermicro
H11SSL-NC

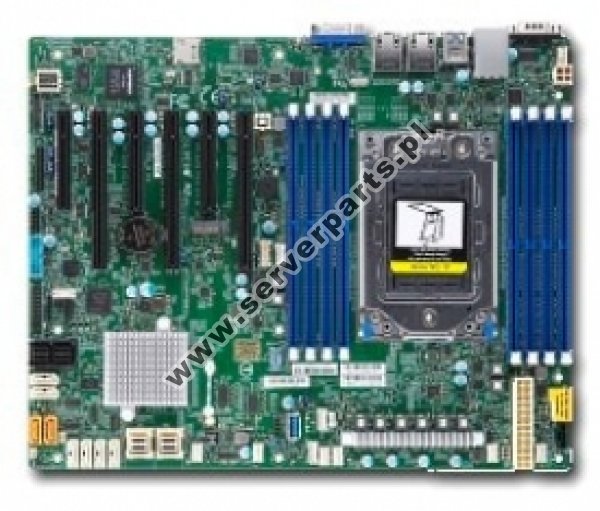

Image above may show a varied configuration or optional parts.

Net: $ 552.12

Gross: $ 679.11

Manufacturer: Supermicro
Part number: H11SSL-NC
Warehouse product ID: 500286, 318869
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042360031
HS: 8473 30 20 00
ECCN: 5A992C

Availability*: On order (estimated delivery time from 10 to 21 business days)

* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.

Delivery cost: $ 6.97 net ($ 8.57 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS

Add to wishlist

More info at manufacturer site
Broken link? Report us.

To avoid steep bank's fee you may pay via SEPA transfer (EURO) or Revolut (Express Elixir) and Wise (Elixir) for payment in USD and EURO.
Add to cart Negotiate the price
Rate product:
No votes.

Kluczowe cechy / Key features :

1. Single AMD EPYC™ 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in, support requires board revision 2.x)
2. 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)
3. Expansion slots: 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, M.2 Interface: 1 PCI-E 3.0 x4, M.2 Form Factor: 2280, 22110
 M.2 Key: M-key
4. 8 SATA 3.0 + Broadcom 3008 for
8 SAS3 ports + 2 NVMe, 1 M.2
5. Dual Gigabit Ethernet LAN Ports
6. ASPEED AST2500 BMC graphics
7. Up to 5 USB 3.0 ports, (2 rear + 2 via header + 1 Type A), Up to 4 USB 2.0 ports, (2 rear + 2 via header)
8. 7 PWM 4-pin Fans with tachometer status monitoring

Product description

We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.

Manufacturer Supermicro
SKU MBD-H11SSL-NC
Basic informations
Chipset SoC
Format ATX
Size 12" x 9.6"
Expansion slots # 6
Processor
CPU socket SP3
CPU family AMD EPYC 7001/7002/7003 SP3 4094
CPU builtin No
Max. CPU # 1
SNK shape Standard
System Memory
Max. memory size support 1024 GB
Memory sockets # 8
Memory correction support ER
Memory size type support DIMM
Memory type support DDR4
On-Board Devices
SATA support Yes
SATA sockets # 8
SAS support Yes
SAS sockets # 8
SAS type SAS3
NVMe support Yes
NVMe sockets # 2
M.2 support Yes
M.2 sockets # 3
NIC # 3
NIC chipset/type
Chipset Type
i210 1GbE
i210 1GbE
RTL8211E PHY 1GbE
Hardaware RAID Yes
Hardware RAID chipset/level LSI3008/0, 1, 10
IPMI Yes
VGA Yes
Other
Supported RSC N/D
Application High-efficiency, Cost-effective
Power consumption 200 W
