SYS-220H-TN24R

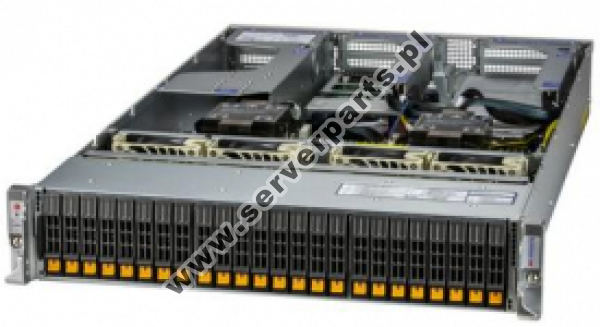

Server Supermicro SYS-220H-TN24R • CSE-HS219-R1K63P • X12DHM-6 • 2U IPMI
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 3 066.62
Gross: $ 3 771.94
Availability: EOL
Manufacturer: Supermicro
Part number: SYS-220H-TN24R
Warehouse product ID: 1045271
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 6.97 net ($ 8.57 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
Kluczowe cechy / Key features :
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
3. Configurable PCI-E slot options up to 8 PCI-E 4.0 x8 or 4 PCI-E 4.0 x16 slots with support for double-width GPU/Accelerator cards
4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
5. 24x 2.5" hot-swap NVMe/SATA/SAS drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
6. 4 heavy duty hot-swap fans with optimal fan speed control
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | SYS-220H-TN24R | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| NIC # | 0 | ||||||||
| Power type | AC | ||||||||
| Chassis | |||||||||
| Product name | HS219-R1K63P | ||||||||
| Basic informations | |||||||||
| U size | 2U | ||||||||
| Expansion slots # | 8 | ||||||||
| Power Supply | |||||||||
| Redundant power supply | Yes | ||||||||
| Power supply power | 1600 W | ||||||||
| Power supply type | AC | ||||||||
| Drives | |||||||||
| Hot-Swap | Yes | ||||||||
| Max. drives # | 24 | ||||||||
| 3,5" drives support | No | ||||||||
| 2,5" drives support | Yes | ||||||||
| E1.S EDSFF drives support | No | ||||||||
| E3.S EDSFF drives support | No | ||||||||
| SATA support | Yes | ||||||||
| SAS support | Yes | ||||||||
| CD/DVD drive installation possibility | No | ||||||||
| SAS controller required | No | ||||||||
| Motherboard | |||||||||
| Product name | X12DHM-6 | ||||||||
| Basic informations | |||||||||
| Chipset | C621A | ||||||||
| Expansion slots # | 1 | ||||||||
| Processor | |||||||||
| CPU socket | Socket P+ LGA4189 | ||||||||
| CPU family | Intel Xeon Scalable LGA4189 | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 2 | ||||||||
| System Memory | |||||||||
| Max. memory size support | 256 GB | ||||||||
| Memory sockets # | 32 | ||||||||
| Memory correction support | ER | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR4 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 2 | ||||||||
| SAS support | No | ||||||||
| NVMe support | No | ||||||||
| IPMI | Yes | ||||||||
| VGA | Yes | ||||||||
