A2SDi-H-TF

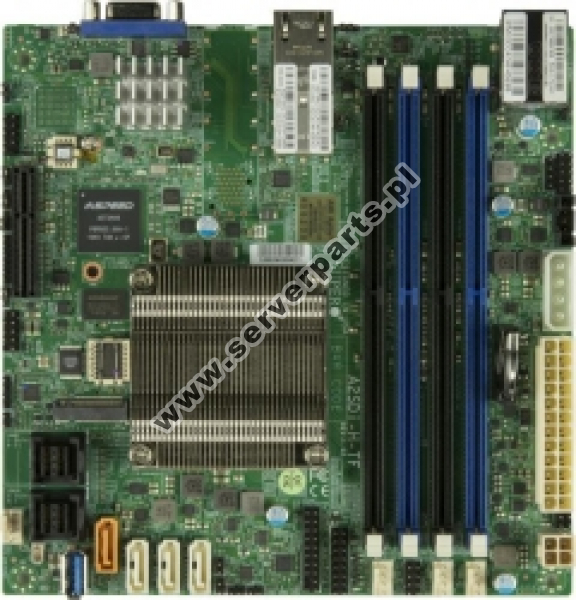

Motherboard Supermicro MBD-A2SDi-H-TF SoC FCBGA1310 Intel Atom C3758 FCBGA1310 SATA M.2 DDR4 IPMI
Net: $ 561.75
Gross: $ 690.95
Manufacturer: Supermicro
Part number: A2SDi-H-TF
Warehouse product ID: 177517, 177518
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042268405
HS: 8473 30 20 00
ECCN: 5A992C
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.70 net ($ 9.47 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
1. Intel® Atom® Processor C3758., Single Socket FCBGA1310 supported, CPU TDP support 25W
2. System on Chip
3. Up to 256GB Registered ECC RDIMM, DDR4-2400MHz, Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
4. 1 PCI-E 3.0 x4, M.2 Interface: PCI-E 3.0 x2 and SATA, M.2 Form Factor: 2242, 2280, M.2 Key: M-Key
5. 1 VGA port
6. SoC controller for 12 SATA3 (6 Gbps) ports; 4 SATA3 ports, 2 MiniSAS HD ports
7. Dual LAN with Intel® C3000 SoC, 2 10GBaseT
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||
|---|---|---|---|---|---|---|---|
| SKU | MBD-A2SDi-H-TF | ||||||
| Basic informations | |||||||
| Chipset | SoC | ||||||
| Format | Mini-ITX | ||||||
| Size | 6.75" x 6.75" | ||||||
| Expansion slots # | 1 | ||||||
| Processor | |||||||
| CPU socket | FCBGA1310 | ||||||
| CPU family | Intel Atom C3758 FCBGA1310 | ||||||
| CPU builtin | Yes | ||||||
| Max. CPU # | 1 | ||||||
| SNK shape | Standard | ||||||
| System Memory | |||||||
| Max. memory size support | 256 GB | ||||||
| Memory sockets # | 4 | ||||||
| Memory correction support | ER | ||||||
| Memory size type support | DIMM | ||||||
| Memory type support | DDR4 | ||||||
| On-Board Devices | |||||||
| SATA support | Yes | ||||||
| SATA sockets # | 12 | ||||||
| SAS support | No | ||||||
| NVMe support | No | ||||||
| M.2 support | Yes | ||||||
| M.2 sockets # | 1 | ||||||
| NIC # | 2 | ||||||
| NIC chipset/type |
|
||||||
| Hardaware RAID | No | ||||||
| IPMI | Yes | ||||||
| VGA | Yes | ||||||
| Other | |||||||
| Supported RSC | N/D | ||||||
| Application | Routing, Cost-effective | ||||||
| Power consumption | 50 W | ||||||
Product description errors? Please let us know.
