F628R3-RTB+

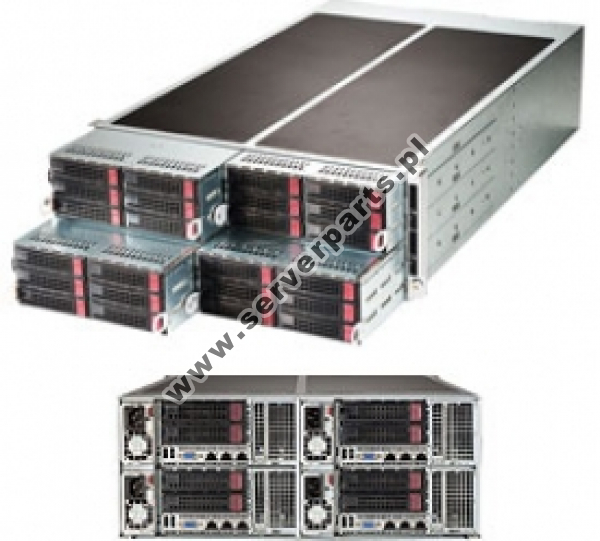

Server Twin Supermicro SYS-F628R3-RTB+ • F424AS-R1K28B • X10DRFR • FatTwin IPMI
Net: $ 4 948.75
Gross: $ 6 086.96
Manufacturer: Supermicro
Part number: F628R3-RTB+
Warehouse product ID: 4663
Size of the package (LxWxH): 89cm x 45cm x 18cm
UPC/EAN: 672042166084
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 6.97 net ($ 8.57 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
Kluczowe cechy / Key features (per node):
4 Hot-plug System Nodes in 4U Each node supports:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
3. Expansion slots: 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (Micro Low Profile)
4. I/O ports: 2 GbE ports, 1 Built-in video, 2 USB 3.0 ports
5. Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
6. 6+2 3.5" Hot-swap SATA3 HDD Bays
7. 2x 80mm 11k RPM middle fans
8. 1280W Redundant Power Supplies Platinum Level (95%)
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | SYS-F628R3-RTB+ | ||||||||
| Basic informations | |||||||||
| Server content See more, section: Parts List - (Items Included) |
|
||||||||
| Power type | AC | ||||||||
| Family | FatTwin | ||||||||
| Application | High-efficiency | ||||||||
| Chassis | |||||||||
| Product name | F628R3-RTB+ | ||||||||
| More info at manufacturer site | Click here to view Broken link? Report us. | ||||||||
| Basic informations | |||||||||
| U size | 4U | ||||||||
| Expansion slots # | 1 | ||||||||
| Power Supply | |||||||||
| Redundant power supply | Yes | ||||||||
| Power supply power | 1280 W | ||||||||
| Power supply type | AC | ||||||||
| Drives | |||||||||
| Hot-Swap | Yes | ||||||||
| Max. drives # | 8 | ||||||||
| 3,5" drives support | Yes | ||||||||
| 2,5" drives support | Yes | ||||||||
| SATA support | Yes | ||||||||
| SAS support | Yes | ||||||||
| CD/DVD drive installation possibility | No | ||||||||
| SAS controller required | Yes | ||||||||
| Motherboard | |||||||||
| Product name | X10DRFR | ||||||||
| More info at manufacturer site | Click here to view Broken link? Report us. | ||||||||
| Basic informations | |||||||||
| Chipset | C612 | ||||||||
| Format | Proprietary | ||||||||
| Size | 6.8" x 19.46" | ||||||||
| Expansion slots # | 2 | ||||||||
| Processor | |||||||||
| CPU socket | LGA2011 | ||||||||
| CPU family | Intel Xeon E5-2600V3/4 LGA2011 | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 2 | ||||||||
| SNK shape | Square&Narrow | ||||||||
| System Memory | |||||||||
| Max. memory size support | 2048 GB | ||||||||
| Memory sockets # | 16 | ||||||||
| Memory correction support | ER | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR4 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 10 | ||||||||
| SAS support | No | ||||||||
| NIC # | 2 | ||||||||
| NIC chipset/type |
|
||||||||
| Hardaware RAID | No | ||||||||
| IPMI | Yes | ||||||||
| VGA | Yes | ||||||||
| Other | |||||||||
| Supported RSC | RSC-RR1U-E8 | ||||||||
| Application | Hosting, High-efficiency, Mission-critical | ||||||||
| Power consumption | 145 W | ||||||||
