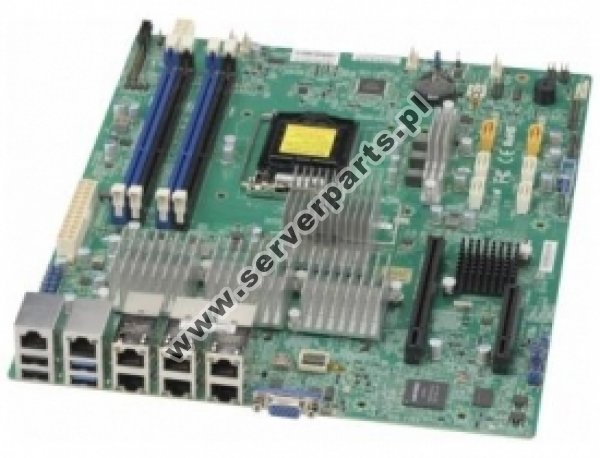

X10SLH-LN6TF
Motherboard Supermicro MBD-X10SLH-LN6TF Intel C226 PCH LGA1150 Intel Xeon E3-1200V3 LGA1150 SATA DDR3 IPMI
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 786.45
Gross: $ 967.33
Availability: EOL
Manufacturer: Supermicro
Part number: X10SLH-LN6TF
Warehouse product ID: 4563, 4564
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042169122
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 6.97 net ($ 8.57 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
Kluczowe cechy / Key features :
1. MBD-X10SLH-LN6TF-O
2. microATX 9.6" x 9.6", (24.4cm x 24.4 cm)
3. Single Socket H3 (LGA 1150)
4. Intel Xeon processor E3-1200 v3/v4 and 4th Gen Core i3, Pentium, Celeron processors
5. Chipset , Intel C226 PCH
6. 4x 240-pin DDR3 DIMM slots
7. 8GB, 4GB, 2GB, 1GB; 1600 MHz ECC DDR3 SDRAM, Up to 32 GB DDR3 ECC SDRAM
8. Integrated IPMI 2.0 with KVM and Dedicated LAN
9. Intel i210AT Controllers; 1x Realtek RTL8211E PHY (dedicated IPMI)
10. 2x RJ45 Gigabit Ethernet LAN ports; 1x RJ45 Dedicated IPMI LAN port
11. 6x SATA3 (6Gbps) via PCH w/ RAID 0, 1, 5, 10
12. Sloty PCI-E : 1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 3.0 x8 slot 1x PCI-E 2.0 x4 (in x8) slot
13. 4x USB 3.0 ports (2 rear, 1 Type-A, 1 via header); 6x USB 2.0 ports (2 rear, 4 via header)
14. 1x VGA D-Sub Connector; 2x COM ports (1 rear, 1 header); SATA DOM power connector support; 1x TPM 1.2
15. BIOS , 128Mb SPI Flash EEPROM with AMI BIOS
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||
|---|---|---|---|---|---|
| SKU | MBD-X10SLH-LN6TF | ||||
| Basic informations | |||||
| Chipset | Intel C226 PCH | ||||
| Format | mATX | ||||
| Size | 9.6" x 9.6" | ||||
| Expansion slots # | 3 | ||||
| Processor | |||||
| CPU socket | LGA1150 | ||||
| CPU family | Intel Xeon E3-1200V3 LGA1150 | ||||
| CPU builtin | No | ||||
| Max. CPU # | 1 | ||||
| SNK shape | Standard | ||||
| System Memory | |||||
| Max. memory size support | 32 GB | ||||
| Memory sockets # | 4 | ||||
| Memory correction support | EC | ||||
| Memory size type support | DIMM | ||||
| Memory type support | DDR3 | ||||
| On-Board Devices | |||||
| SATA support | Yes | ||||
| SATA sockets # | 6 | ||||
| SAS support | No | ||||
| NVMe support | No | ||||
| M.2 support | No | ||||
| NIC # | 1 | ||||
| NIC chipset/type |
|
||||
| Hardaware RAID | No | ||||
| IPMI | Yes | ||||
| VGA | Yes | ||||
| Other | |||||
| Supported RSC | N/D | ||||
| Application | High-efficiency, Cost-effective | ||||
| Power consumption | 100 W | ||||
Product description errors? Please let us know.
