X10SRH-CLN4F

Motherboard Supermicro MBD-X10SRH-CLN4F C612 LGA2011 Intel Xeon E5-2600V3/4 LGA2011 SATA/SAS DDR4 IPMI

Supermicro
Product unavailable (EOL) or limited sale (shortage). Please contact.
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
X10SRH-CLN4F

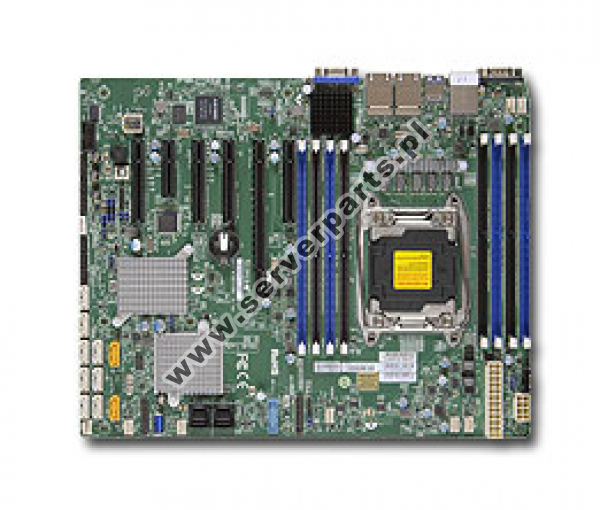

Image above may show a varied configuration or optional parts.

Net: $ 480.43

Gross: $ 590.93

Availability: EOL

Manufacturer: Supermicro
Part number: X10SRH-CLN4F
Warehouse product ID: 4256, 4257
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042159789
HS: 8473 30 20 00
ECCN: 5A992C

Availability*: On order (estimated delivery time from 10 to 21 business days)

* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.

Delivery cost: $ 7.06 net ($ 8.69 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS

Kluczowe cechy / Key features :

1. Single socket R3 (LGA 2011) supports, Intel® Xeon® processor E5-2600 v4†/ v3 and E5-1600 v4†/ v3 family
2. Intel® C612 chipset
3. Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
4. 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x2 (in x4), 1 PCI-E 2.0 x4 (in x8)
5. Intel® i350-AM4 Quad port GbE LAN
6. 10x SATA3 (6Gbps) via C612
7. 8x SAS3 (12Gbps) via Broadcom 3008 SW controller; RAID 0, 1, 10
7. 1x VGA, 2x COM, 1x TPM
8. 4x USB 3.0 ports, 8x USB 2.0 ports
9. 2x SuperDOM with built-in power

Product description

We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.

Manufacturer Supermicro
SKU MBD-X10SRH-CLN4F
Basic informations
Chipset C612
Format ATX
Size 12" x 9.6"
Expansion slots # 4
Processor
CPU socket LGA2011
CPU family Intel Xeon E5-2600V3/4 LGA2011, Intel Xeon E5-1600V3/4 LGA2011
CPU builtin No
Max. CPU # 1
SNK shape Narrow
System Memory
Max. memory size support 512 GB
Memory sockets # 8
Memory correction support ER
Memory size type support DIMM
Memory type support DDR4
On-Board Devices
SATA support Yes
SATA sockets # 10
SAS support Yes
SAS sockets # 8
SAS type SAS3
NVMe support No
M.2 support No
NIC # 4
NIC chipset/type
Chipset Type
i350 1GbE
i350 1GbE
i350 1GbE
i350 1GbE
Hardaware RAID Yes
Hardware RAID chipset/level LSI3008/0, 1, 10
IPMI Yes
VGA Yes
Other
Supported RSC RSC-RR1U-E8
Application Storage
Power consumption 145 W
