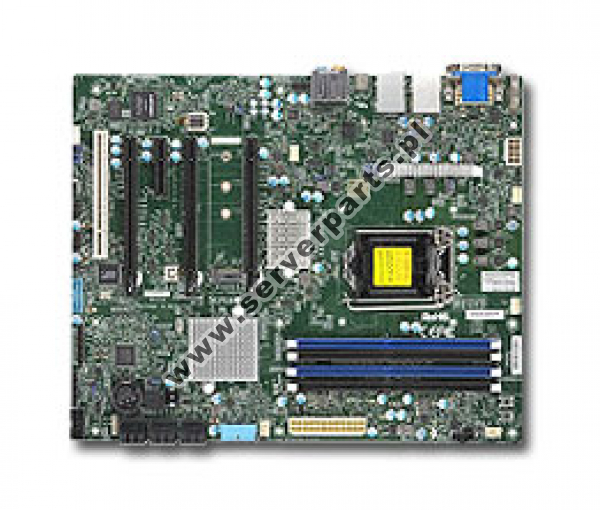

X11SAT-F

Motherboard Supermicro MBD-X11SAT-F C236 LGA1151 Intel Xeon E3-1200V5/V6 LGA1151 SATA DDR4 IPMI

Supermicro
Product unavailable (EOL) or limited sale (shortage). Please contact.
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
X11SAT-F
Image above may show a varied configuration or optional parts.

Net: $ 371.29

Gross: $ 456.69

Availability: EOL

Manufacturer: Supermicro
Part number: X11SAT-F
Warehouse product ID: 34259, 34260
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042212019

Availability*: On order (estimated delivery time from 10 to 21 business days)

* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.

Delivery cost: $ 6.97 net ($ 8.57 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS

Kluczowe cechy / Key features :

1. Single socket H4 (LGA 1151) supports, Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
4. 3 PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCI-E 3.0 x1 (in x4), and 1 5V PCI 32-bit slots
5. Single GbE LAN with Intel® i210-AT, Single GbE LAN with Intel® i219LM
6. 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
7. I/O: 1 VGA, 1 COM, TPM header
8. 6 USB 3.0 (2 rear + 4 via header(s)) , 4 USB 2.0 (2 rear + 2 via header(s)), 1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)
9. M.2 NGFF connector

Product description

We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.

Manufacturer Supermicro
SKU MBD-X11SAT-F
Basic informations
Chipset C236
Format ATX
Size 12" x 9.6"
Expansion slots # 4
Processor
CPU socket LGA1151
CPU family Intel Xeon E3-1200V5/V6 LGA1151, Intel Core 6th/7th i7 i5 i3 Skylake LGA1151
CPU builtin No
Max. CPU # 1
SNK shape Standard
System Memory
Max. memory size support 64 GB
Memory sockets # 4
Memory correction support EU
Memory size type support DIMM
Memory type support DDR4
On-Board Devices
SATA support Yes
SATA sockets # 6
SAS support No
NVMe support No
M.2 support No
NIC # 2
NIC chipset/type
Chipset Type
i210AT 1GbE
i219LM 1GbE
Hardaware RAID No
IPMI Yes
VGA Yes
Other
Supported RSC RSC-RR1U-E8
Application Storage
Power consumption 95 W
