X11SAT

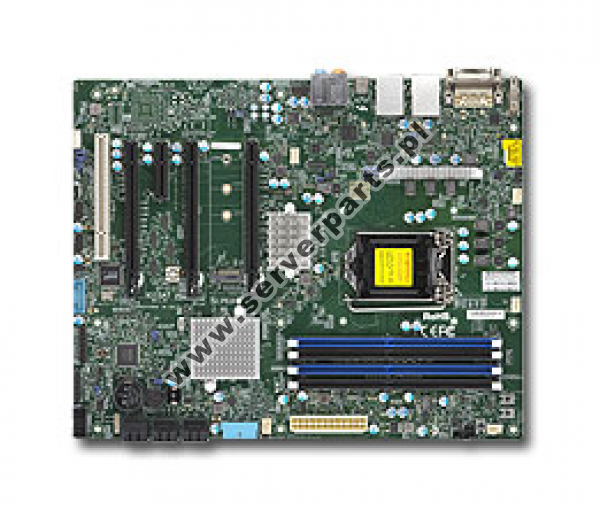

Motherboard Supermicro MBD-X11SAT C236 LGA1151 Intel Xeon E3-1200V5/V6 LGA1151 SATA M.2 DDR4
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 348.82
Gross: $ 429.05
Availability: EOL
Manufacturer: Supermicro
Part number: X11SAT
Warehouse product ID: 34257, 34258
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042211999
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.04 net ($ 8.66 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
Kluczowe cechy / Key features :
1. Single socket H4 (LGA 1151) supports, Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
4. 3 PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCI-E 3.0 x1 (in x4), and 1 5V PCI 32-bit slots
5. Single GbE LAN with Intel® i210-AT, Single GbE LAN with Intel® i219LM
6. 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
7. I/O: 1 COM, TPM header
8. 6 USB 3.0 (2 rear + 4 via header(s)) , 4 USB 2.0 (2 rear + 2 via header(s)), 1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)
9. M.2 NGFF connector
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
Manufacturer | Supermicro | ||||||
---|---|---|---|---|---|---|---|
SKU | MBD-X11SAT | ||||||
Basic informations | |||||||
Chipset | C236 | ||||||
Format | ATX | ||||||
Size | 12" x 9.6" | ||||||
Expansion slots # | 4 | ||||||
Processor | |||||||
CPU socket | LGA1151 | ||||||
CPU family | Intel Xeon E3-1200V5/V6 LGA1151, Intel Core 6th/7th i7 i5 i3 Skylake LGA1151 | ||||||
CPU builtin | No | ||||||
Max. CPU # | 1 | ||||||
SNK shape | Standard | ||||||
System Memory | |||||||
Max. memory size support | 64 GB | ||||||
Memory sockets # | 4 | ||||||
Memory correction support | EU | ||||||
Memory size type support | DIMM | ||||||
Memory type support | DDR4 | ||||||
On-Board Devices | |||||||
SATA support | Yes | ||||||
SATA sockets # | 6 | ||||||
SAS support | No | ||||||
NVMe support | No | ||||||
M.2 support | Yes | ||||||
M.2 sockets # | 1 | ||||||
NIC # | 2 | ||||||
NIC chipset/type |
|
||||||
Hardaware RAID | No | ||||||
IPMI | No | ||||||
VGA | Yes | ||||||
Other | |||||||
Supported RSC | RSC-RR1U-E8 | ||||||
Application | Storage | ||||||
Power consumption | 95 W |
Product description errors? Please let us know.
