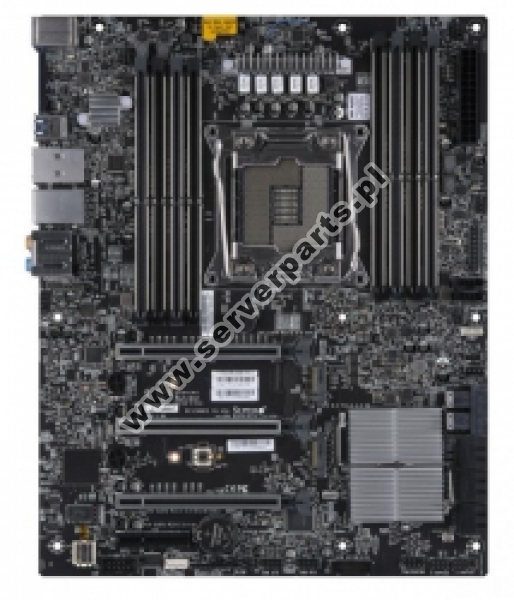

X11SRA
Motherboard Supermicro MBD-X11SRA Intel® C422 Socket R4 LGA 2066 Intel Xeon W-2100 LGA2066 SATA M.2 DDR4
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 345.61
Gross: $ 425.10
Availability: EOL
Manufacturer: Supermicro
Part number: X11SRA
Warehouse product ID: 318807, 318808
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042303557
HS: 8473 30 20 00
ECCN: 5A992C
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.04 net ($ 8.66 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
1. Intel® Xeon® Processor Skylake-W , Intel® Xeon® Processor W Family., Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W
2. Intel® C422
3. Up to 256GB Registered ECC RDIMM, DDR4-2666MHz; Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots
4. 3 PCI-E 3.0 x16, 1 PCI-E 3.0 x4***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots***, M.2 Interface: 2 PCI-E 3.0 x4, M.2 Form Factor: 22110, M.2 Key: M-Key (RAID 0,1 support), U.2 Interface: 2 PCI-E 3.0 x4
5. Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10, *iRST enabled, only SATA2 to SATA5 support RAID.
6. Single LAN with Intel® PHY I219LM LAN controller, Single LAN with Aquantia 5G LAN chip AQC108
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||
|---|---|---|---|---|---|---|---|
| SKU | MBD-X11SRA | ||||||
| Basic informations | |||||||
| Chipset | Intel® C422 | ||||||
| Format | ATX | ||||||
| Size | 12" x 9.6" | ||||||
| Expansion slots # | 4 | ||||||
| Processor | |||||||
| CPU socket | Socket R4 LGA 2066 | ||||||
| CPU family | Intel Xeon W-2100 LGA2066, Intel Xeon W-2200 LGA2066 | ||||||
| CPU builtin | No | ||||||
| Max. CPU # | 1 | ||||||
| SNK shape | Standard | ||||||
| System Memory | |||||||
| Max. memory size support | 256 GB | ||||||
| Memory sockets # | 8 | ||||||
| Memory correction support | ER | ||||||
| Memory size type support | DIMM | ||||||
| Memory type support | DDR4 | ||||||
| On-Board Devices | |||||||
| SATA support | Yes | ||||||
| SATA sockets # | 6 | ||||||
| SAS support | No | ||||||
| NVMe support | No | ||||||
| M.2 support | Yes | ||||||
| M.2 sockets # | 1 | ||||||
| NIC # | 2 | ||||||
| NIC chipset/type |
|
||||||
| Hardaware RAID | No | ||||||
| IPMI | No | ||||||
| VGA | No | ||||||
| Other | |||||||
| Supported RSC | RSC-RR1U-E8, RSC-RR1U-E16 | ||||||
| Application | Cost-effective, Workstation, Cost-optimized, Gaming | ||||||
| Power consumption | 80 W | ||||||
Product description errors? Please let us know.
