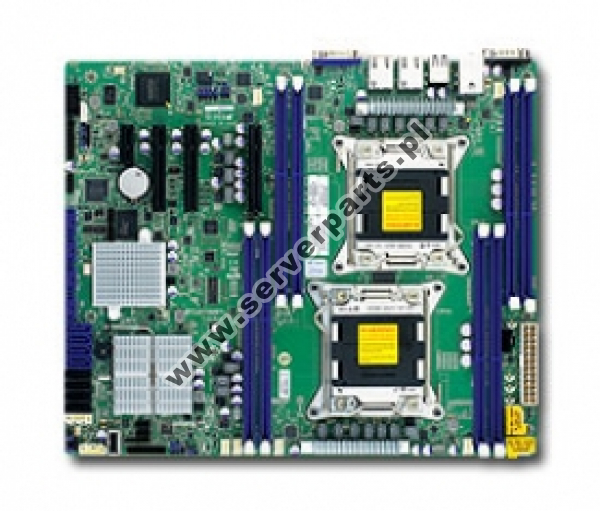

X9DRL-7F
Motherboard Supermicro MBD-X9DRL-7F C602J LGA2011 Intel Xeon E5-2600V1/2 LGA2011 SATA/SAS DDR3 IPMI
You can check our refurbished list on our blog https://www.serverparts.pl/en/blog?q=refurbished
Net: $ 431.21
Gross: $ 530.39
Availability: EOL
Manufacturer: Supermicro
Part number: X9DRL-7F
Warehouse product ID: 4208, 4209
Size of the package (LxWxH): 47cm x 38cm x 9cm
UPC/EAN: 672042132348
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.04 net ($ 8.66 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
Kluczowe cechy / Key features :
1. Dual socket R (LGA 2011) supports, Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
2. Intel® C602J chipset
3. Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
4. Expansion slots: 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8), 1 PCI-E 2.0 x1
5. Intel® i210 GbE LAN, 2 ports
6. 4x SATA2 and 2x SATA3 ports
7. 8x SAS ports via Broadcom 2208
8. Integrated IPMI 2.0 and KVM with Dedicated LAN
9. 7x USB 2.0 ports (4 rear, 2 via header + 1 Type A)
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||
|---|---|---|---|---|---|
| SKU | MBD-X9DRL-7F | ||||
| Basic informations | |||||
| Chipset | C602J | ||||
| Format | ATX | ||||
| Size | 12" x 10" | ||||
| Expansion slots # | 4 | ||||
| Processor | |||||
| CPU socket | LGA2011 | ||||
| CPU family | Intel Xeon E5-2600V1/2 LGA2011 | ||||
| CPU builtin | No | ||||
| Max. CPU # | 2 | ||||
| SNK shape | Standard | ||||
| System Memory | |||||
| Max. memory size support | 512 GB | ||||
| Memory sockets # | 8 | ||||
| Memory correction support | EC | ||||
| Memory size type support | DIMM | ||||
| Memory type support | DDR3 | ||||
| On-Board Devices | |||||
| SATA support | Yes | ||||
| SATA sockets # | 10 | ||||
| SAS support | Yes | ||||
| SAS sockets # | 8 | ||||
| SAS type | SAS2 | ||||
| NVMe support | No | ||||
| M.2 support | No | ||||
| NIC # | 1 | ||||
| NIC chipset/type |
|
||||
| Hardaware RAID | No | ||||
| IPMI | Yes | ||||
| VGA | Yes | ||||
| Other | |||||
| Supported RSC | N/D | ||||
| Application | High-efficiency, Cost-effective | ||||
| Power consumption | 130 W | ||||
