AS-2014CS-TR

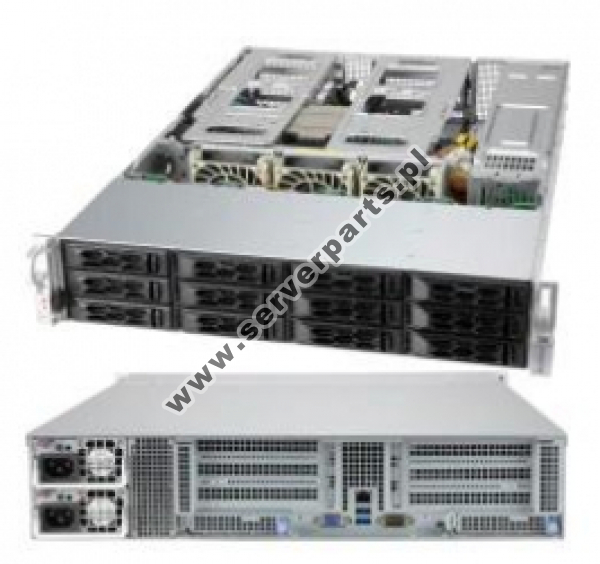

Server Supermicro AS -2014CS-TR • CSE-LA26TS-R920AWP • H12SSW-AN6 • 2U IPMI NVMe
Net: $ 1 806.16
Gross: $ 2 221.58
Manufacturer: Supermicro
Part number: AS-2014CS-TR
Warehouse product ID: 845659
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.00 net ($ 8.60 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 20€ DHL/30€ UPS
More info at manufacturer site
Broken link? Report us.
Kluczowe cechy / Key features :
1. Single AMD EPYC™ 7002/7003 Series Processor
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. Expansion slots: 4 PCI-E 4.0 x16 (FH, 10.5" L) slots, or 2 PCI-E 4.0 x16 (FHHL) + 4 PCI-E 4.0 x8,(FHHL) slots;
2 AIOM slots for flexible networking,(One x8 AIOM slot and one x16 AIOM slot)
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
5. 12 Hot-swap 3.5" SATA3/SAS3/NVMe drive bays:12 SATA3 by default or 8 SATA3 + 4NVMe via optional cables
or 12 SAS3 via optional SAS kit; Optional 2x 2.5" peripheral drive bays via rear drive bay kits
M.2 Interface: 2 PCI-E 4.0 x4, M.2 Form Factor: 2242, 2260, 2280, 22110, M.2 Key: M-Key
6. 2 USB 3.0 ports (rear), 1 VGA, 1 COM, ASPEED AST2600 BMC graphics
7. Tool-less Drive Trays and Tool-less Brackets
8. 920W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | AS-2014CS-TR | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| NIC # | 0 | ||||||||
| Power type | AC | ||||||||
| Chassis | |||||||||
| Product name | LA26TS-R920AWP | ||||||||
| Basic informations | |||||||||
| U size | 2U | ||||||||
| Expansion slots # | 6 | ||||||||
| Power Supply | |||||||||
| Redundant power supply | Yes | ||||||||
| Power supply power | 920 W | ||||||||
| Power supply type | AC | ||||||||
| Drives | |||||||||
| Hot-Swap | Yes | ||||||||
| Max. drives # | 12 | ||||||||
| 3,5" drives support | Yes | ||||||||
| 2,5" drives support | No | ||||||||
| E1.S EDSFF drives support | No | ||||||||
| E3.S EDSFF drives support | No | ||||||||
| SATA support | Yes | ||||||||
| SAS support | Yes | ||||||||
| CD/DVD drive installation possibility | No | ||||||||
| SAS controller required | No | ||||||||
| Motherboard | |||||||||
| Product name | H12SSW-AN6 | ||||||||
| Basic informations | |||||||||
| Chipset | SoC | ||||||||
| Expansion slots # | 4 | ||||||||
| Processor | |||||||||
| CPU socket | SP3 | ||||||||
| CPU family | AMD EPYC 7001/7002/7003 SP3 4094 | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 1 | ||||||||
| System Memory | |||||||||
| Max. memory size support | 256 GB | ||||||||
| Memory sockets # | 16 | ||||||||
| Memory correction support | EC | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR4 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 16 | ||||||||
| SAS support | No | ||||||||
| NIC type | 1GbE | ||||||||
| NVMe support | Yes | ||||||||
| IPMI | Yes | ||||||||
| VGA | Yes | ||||||||
Product description errors? Please let us know.
