                                                                             X12 motherboards dedicated for Intel Xeon E-2300 (Rocket Lake-E)

It took a long time, but a few days ago, "X12" motherboards from Supermicro finally appeared on the market. To celebrate the release of the Intel Xeon E-2300 (Socket LGA-1200 (Socket H5) series, Intel has released four standard 1U rack servers, a tower server, two MicroCloud dense servers and two MicroBlade servers. This tutorial has been written to acquaint you with the servers listed below and the title motherboards to show the differences between them.


Servers 1U

Supermicro has four new servers based on the Intel Xeon E-2300 available, and all 1U servers have 4 DDR4 DIMM slots supporting UDIMM ECC for up to 128GB of RAM at 3200MHz.

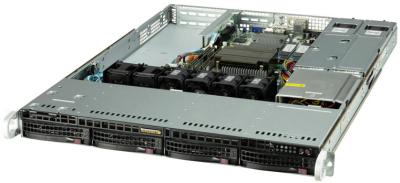

SYS-510T-WTR

  • Chipset Intel C256
  • Allows for 1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8(FHFL);
  • 1 PCI-E 3.0 x4 (8x LP)Drives that fit inside are 4x 3.5" (hot swap) and 2x NVMe M2. (if you have a Xeon CPU) or 1x NVMe M.2 (if you have a Pentium CPU)
  • Redundant (1+1) 500W Platinum power supply
  • 2 10GbE LAN ports (Intel X550)
  • Interfejs IPMI (ASPEED AST2600)

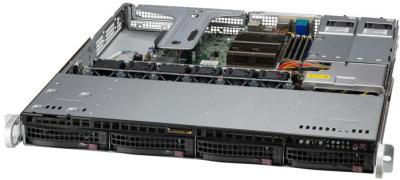

SYS-510T-MR

  • Chipset Intel C256,
  • Allows 1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8 (FHHL) connections
  • Drives that fit inside are 4x 3.5" (hot swap) and 2x NVMe M2 drives
  • Redundant (1+1) 400W Platinum power supply
  • 2 1GbE LAN ports (Intel i210)
  • 1 dedicated HBA slot
    Interfejs IPMI

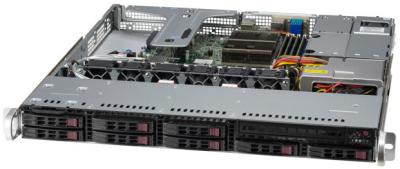

SYS-110T-M

  • Chipset Intel C256
  • Allows 1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8(FHHL) connections
  • Drives that fit inside are 8x 2.5" (hot swap) and 1x NVMe M.2
  • Single Platinum 400W power supply, but it is possible to connect a redundant power supply
  • 2 1GbE LAN ports (Intel i210)
  • 1 dedicated HBA slot
    Interfejs IPMI (ASPEED AST2600)

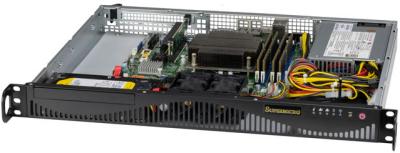

SYS-510T-ML

  • Chipset Intel C252
  • Accommodates 1 PCI-E 4.0 x8 slot (x16 FHHL)
  • Drives that fit inside are 2x 3.5" and 1x NVMe M.2
  • Single Platinum 350W power supply
  • 2 1GbE LAN ports (Intel i210)
    Interfejs IPMI (ASPEED AST2600)



Tower Servers

Where we will not use rack servers due to the lack of a rack cabinet, we can reach for tower servers. The server listed below is built around a Supermicro CSE-731I-404B chassis.

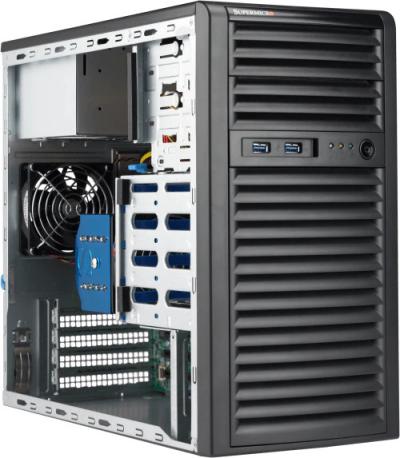

SYS-530T-I

  • Chipset Intel C252
  • 4 DIMM slots, which gives you the ability to plug in up to 128GB of RAMAllows PCI-E 3.0 x2 (4x), PCI-E 4.0 x8, PCI-E 4.0 x8 (x16) and PCI-E 4.0 x4 (x8) connectionsDrives that fit inside are 4x 3.5", 1x NVMe M.2 and 2x 5.25"
  • The case type is Mini-Tower
  • 400W 80PLUS Gold power supply
  • 2 1GbE LAN ports (Intel i210)
    Interfejs IPMI (ASPEED AST2600)



MicroCloud Servers



In a 3U chassis, we have a choice of 12-node (H12TRF) or 8-node (H8TNR) versions. Common features of the MicroCloud servers listed below are:Chipset Intel C256,

  • 4 DIMM slots (per node) allowing up to 128GB of RAM (Very Low Profile),
  • 2 1GbE LAN ports for one node (Intel i350),
  • Interfejs IPMI (ASPEED AST2600)
  • The enclosure type is 3U,

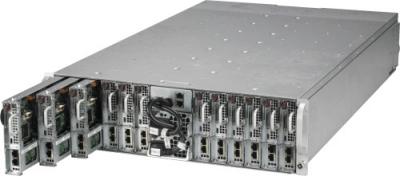

SYS-530MT-H12TRF

  • PCI-E 4.0 x8 MLP
  • 2 drive slots (4x 2.5" or 2x 3.5" per node)
    1 M.2 NVMe lub 1 M.2 SATA3
  • Redundant (1+1) Titanium 2200W power supply

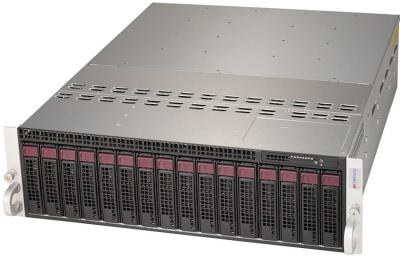

SYS-530MT-H8TNR

  • Enables PCI-E 4.0 x8 (16x) low profile connection
  • 2 drive slots (hot-swap; 2x 3.5" hot-swap per node)
    2 M.2 NVMe albo 2 M.2 SATA3
  • Redundant (1+1) Titanium 2000W power supply

Although these two servers are very similar in specifications they differ significantly. One of the aforementioned servers (SYS-530MT-H12TRF) features 12 nodes, which are 29.5" (749.3 mm) deep, but do not support hot-swap drives. The second server (SYS-530MT-H8TNR) supporting 8 nodes features a 23" (585mm) depth which will please owners of shallow (600mm) cabinets. In this case, for a smaller number of nodes and depth, you get hot-swap capability.
This is designed so that the nodes can be pulled out and serviced individually along with the nodes for data storage.
Comparing it to the SYS-530MT-H12TRF, such a SYS-530MT-H8TNR, despite having only 8 nodes, features instead that it has two 3.5" hot-swap bays (16 total).



MicroBlade servers



The common features of the MicroBlade servers listed below are:

  • Chipset Intel C256,
  • 4 DIMM slots (per node) allowing up to 128GB of RAM,
  • No PCI-E port,
    Interfejs IPMI (ASPEED AST2500).

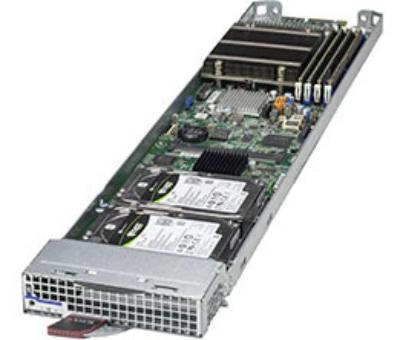

MBI-310T-4C2

  • 1 NVMe/SATA SSD slot (2280/22110;M-Key) and 2x 2.5" SAS3 HDDs
  • 2 1GbE LAN ports for one node (Intel i350)
  • Avago 3008 SAS3 (12Gbps) controller

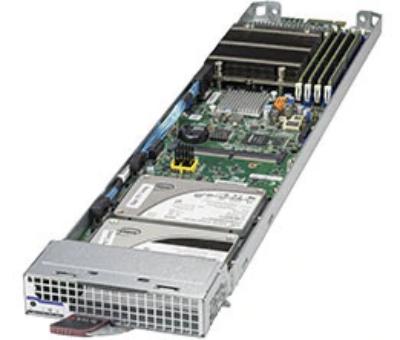

MBI-310T-4T2N

  • 2x U.2 NVMe SSD i 1x NVMe/SATA SSD (2280/22110; M-Key
  • 2 1GbE LAN ports for one node (Intel i350)

Supermicro's Intel Xeon E-2300 (Rocket Lake-E) series motherboards

After presenting the range of new servers that Supermicro has in store, we finally move on to the nail of the show:

X12STH-* (Intel C256) motherboards.

The common features of the following motherboards are as follows:

  • Supports 10th Generation Intel Pentium and Intel Xeon E-2300 Rocket Lake processors
  • Single socket LGA-1200 (socket H5), CPU TDP supports TDP up to 95W
  • Supports up to 128GB DDR4 ECC UDIMM at 3200MHz in 4 DIMM slots
  • Format do Micro-ATX
  • Onboard Storage Controller is Intel C256 for 8 SATA3 (6Gbps) ports; RAID 0,1,5,10
  • 6 USB 2.0 and 5 USB 3.2 Gen1 ports
  • 1 port VGA i 2 porty COM
  • 4 PCI-E 3.0 x4 M.2 drive slots (M-Key; 2280/22110)
  • TPM support
  • 2 SuperDOM
  • Interfejs IPMI (ASPEED AST2600
  • Supports iGPU



X12STH-SYS

  • Enables 1 PCI-E 4.0 x16 and 1 PCI-E 3.0 x4 (in x8 slot)
  • 2 porty LAN Kontroler Intel Ethernet I210
  • Dedicated HBA slot

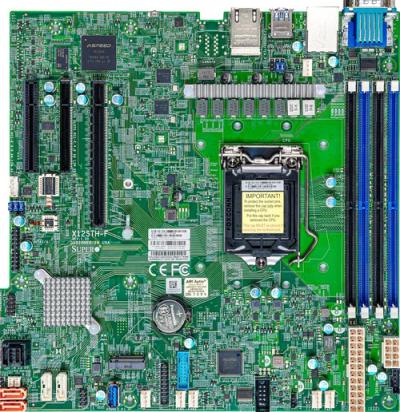

X12STH-F

  • Allows for 1 PCI-E 4.0 x16, 1 PCI-E 4.0 x4 (in x8 slot) and 1 PCI-E 3.0 x4 (in x8 slot)
  • 2 porty LAN Intel Ethernet Controller I210

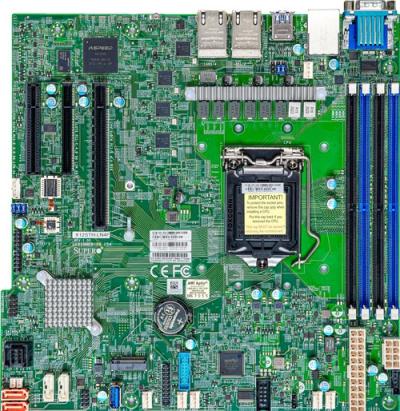

X12STH-LN4F

  • Allows for 1 PCI-E 4.0 x16, 1 PCI-E 4.0 x4 (in x8 slot) and 1 PCI-E 3.0 x4 (in x8 slot)
  • 4 porty LAN Intel Ethernet Controller I210



X12STL-* (Intel C252) motherboards.

The most important difference between these boards is the motherboard format itself. In the X12STL-IF model, the board format is Mini-ITX, while the X12STL-F board is microATX format.

The common features of the below-mentioned motherboards are as follows:

  • Supports 10th Generation Intel Pentium and Intel Xeon E-2300 Rocket Lake processors
  • Single socket LGA-1200 (socket H5), CPU TDP supports TDP up to 95W
  • Onboard Storage Controller is Intel C252 for 6 SATA3 (6Gbps) ports; RAID 0,1,5,10
  • 1 port VGA
  • TPM support
  • 2 SuperDOM
  • Has 1 PCI-E 3.0 x4 M.2 drive slot (M-Key ; 2280)
  • Interfejs IPMI (ASPEED AST2600)

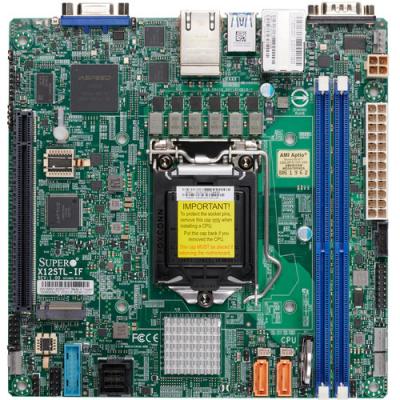

X12STL-IF

  • Supports up to 64GB of 3200MHz unbuffered DDR4 ECC UDIMM memory in 2 DIMM slots
  •  Mini-ITX
  • Allows connection of 1 PCI-E 4.0 x16
  • 2 porty LAN I210 Kontroler Gigabit Ethernet
  • 4 porty USB 2.0 i 4 USB 3.2 Gen1
  • 1 port COM

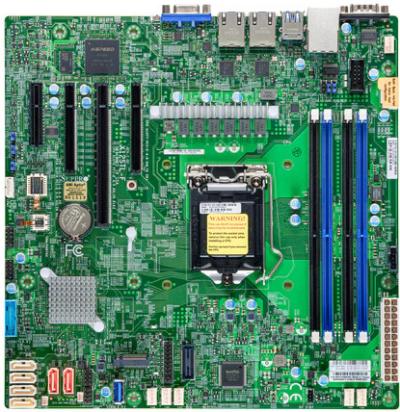

X12STL-F

  • Supports up to 128GB of 3200MHz unbuffered DDR4 ECC UDIMM memory in 4 DIMM slots
  • microATX
  • Enables 1 PCI-E 4.0 x8, 1 PCI-E 4.0 x8 (in x16 slot), 1 PCI-E 4.0 x4 (in x8 slot) and 1 PCI-E 3.0 x2 (in x4 slot)
  • 2 1GbE Intel I210 LAN ports
  • 4 USB 2.0 and 5 USB 3.2 Gen1 ports
  • 2 port COM



X12STW-* (Intel C256) motherboards.

The X12STW-* series is dedicated to WIO solutions. In X12STW-TF model we get Dual LAN with transmission speed of 10Gbase-T compared to X12STW-F model where we get transmission speed of only 1GbE.

The common features of the following motherboards are as follows:

  • Supports Intel Pentium and Intel Xeon E-2300 Rocket Lake processors
  • Supports up to 128GB of 3200MHz unbuffered DDR4 ECC UDIMM memory in 4 DIMM slots
  • Proprietary WIO
  • Onboard Storage Controller is Intel C256 for 8 SATA3 (6Gbps) ports; RAID 0,1,5,10
  • Allows connection of 1 PCI-E 4.0 x16 AND 1 PCI-E 3.0 x4 (in x8)
  • Has 1 PCI-E 4.0 x4 M.2 and PCI-E 3.0 x4 (M-Key; 2280/22110) drive slot
  • 6 portów USB 2.0, 4 porty USB 3.2 Gen1 i 1 port USB 3.2 Gen2
  • 1 port VGA
  • 2 ports COM
  • TPM
  • Interfejs IPMI (ASPEED AST2600)

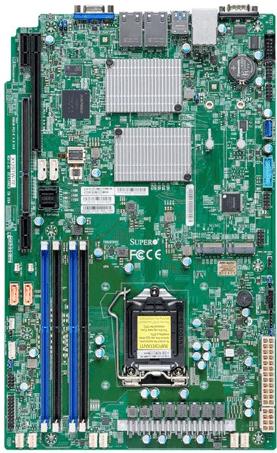

X12STW-TF

  • 2 ports LAN Intel X550 10GBase-T Ethernet Controller

X12STW-F

  • 2 ports LAN Intel X550 10GBase-T Ethernet Controller

X12ST (Intel C256) motherboards.

For a 12 node 3U server there is a dedicated model X12STE-F and for an 8 node X12STD-F.
The common features of the following motherboards are as follows:

  • Supports Intel Pentium and Intel Xeon E-2300 Rocket Lake processors
  • Single socket LGA-1200 (socket H5), CPU TDP supports TDP up to 95W
  • Proprietary
  • Allows connection of 1 PCI-E 4.0 x16 AND 1 PCI-E 3.0 x4 (in x8)
  • 2 porty USB 2.0
  • 1 port VGA
  • 1 port COM
  • TPM support
  • 1 LAN Realtek RTL8211FS PHY (dedicated IPMI ASPEED AST 2600)

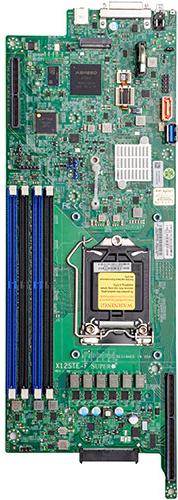

X12STE-F

  • Supports up to 128GB of unbuffered VLP DDR4 ECC/non-ECC UDIMM memory at 3200MHz in 4 DIMM slots
  • Has 1 PCI-E 3.0 x4 M.2 drive slot (2280/22110)
  • Onboard Storage Controller is Intel C256 for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10

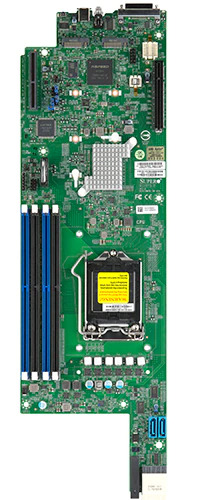

X12STD-F

  • Supports up to 128GB of 3200MHz unbuffered DDR4 ECC/non-ECC UDIMM memory in 4 DIMM slots
  • It has 2 PCI-E 3.0 x4 M.2 drive slots (2280/22110)
  • Onboard Storage Controller is Intel C256 for 2 SATA3 (6Gbps) ports; RAID 0,1,5,10

Summary

Supermicro has a wide range of products dedicated to the new E-2300 processes. These products will find use in small businesses (SMEs), SYS-530T-I, can serve as a standalone server or workstation. The SYS-510T-ML, on the other hand, will work well as a router. The 1U servers with hot-swap disk support SYS-510T-WTR, SYS-510T-MR, SYS-110T-M are sure to find a place in DCs as application, virtualization or cloud computing servers. Ready-made high-density 8 or 12 node 3U servers will allow you to run many services while reducing colocation costs, their applications are: cloud computing, web hosting, VM. For customers for whom density and scalability are of utmost importance, the MicroBlade 28/14 nodes in 6U/3U up to 196 nodes in a 42U rack is presented. In conclusion, Supermicro has a wide selection of new hardware to offer which makes it possible to meet the needs of every customer. I hope this guide has helped you at least a little in your purchases.
