Tests of a Budget 1U AMD Epyc Server for 4 NVMe Gen 4.0 Drives (Will the BPN-SAS3-815TQ-N4 Support NVMe Gen 4.0 Drives?)

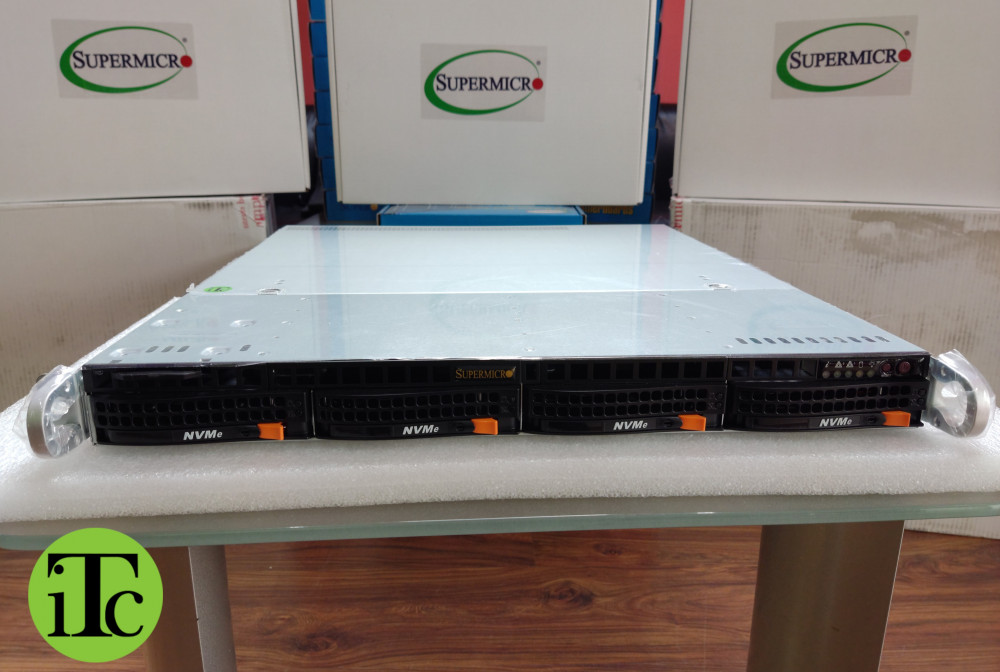

We built a 1U ITC-RR3R server for a client, equipped with an AMD Epyc Rome 7542 32C/64T 2.9G 128MB processor, and tested whether the BPN-SAS3-815TQ-N4 backplane, which is included in the CSE-813MF2TQC4-R407CB chassis, supports NVMe Gen 4.0 drives.

Supermicro 1U server NVMe ITC

Sure, here's the translation:

Configuration:

Chassis: Supermicro CSE-813MF2TQC4-R407CB 1U, Hot-Swap 4xHDD SAS3/SATA3/NVMe, 400W Redundant
Motherboard: Supermicro MBD-H12SSL-NT ATX, supporting a single AMD Epyc 7003/7002 processor, up to 2TB RAM in 8 modules. It has two M.2 slots (22x80, 22x110) and 2 SlimSAS x8 ports, each supporting 2 NVMe drives. Network support is provided by a Broadcom BCM57416 2x10GBase-T network card. Management is handled by an ASPEED AST2500 module.
Processor: PSE-ROM7542-0075 AMD Epyc Rome 7542 32C/64T 2.9G 128MB
Heatsink: Supermicro SNK-P0062P 1U passive, dedicated to SP3 socket
RAM: 512GB DDR4 ECC Registered (8 x 64GB MEM-DR464L-SL03-ER32)
Drive: HDS-SUN0-MZQL2960HCJRA7 Samsung PM9A3 960GB NVMe PCIe4x4 U.2 7mm 1DWPD 5YR SED Opal
Drive: HDS-TUN0-KCD6XLUL960G Kioxia CD6-R 960GB NVMe PCIe4x4 2.5" 15mm SIE 1DWPD 5YR
Drive: HDS-MMN-MTFDKBA480TFR1BC - Micron 7450 PRO 480GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC
Dedicated Riser Card: RSC-S-6G4 1U Left Standard equipped with PCI-E 4.0 x16 slot
Cables: CBL-SAST-0817 to connect the motherboard to the backplane for NVMe drive support
License: SFT-OOB-LIC, extending IPMI capabilities

First Boot

We connected the server to power and the network. We logged into IPMI. IPMI detected the disk. We booted the operating system from a Kubuntu 23.10 live USB, but lspci did not show any devices that could be identified as our NVMe drives. We restarted the server and changed the NVMe Firmware Source option in the BIOS from Vendor to AMI Native Support.

BIOS → Advanced → PCIe/PCI/PNP Configuration → NVMe Firmware Source Select [AMI Native Support].

Restart and Commands Execution

We restarted the server and issued the nvme and lspci commands:

# nvme list -v

Subsystem Subsystem-NQN Controllers

---------------- ------------------------------------------------------------------------------------------------ ----------------

nvme-subsys2 nqn.2016-08.com.micron:nvme:nvm-subsystem-sn-24034667BF24 nvme2

nvme-subsys1 nqn.1994-11.com.samsung:nvme:PM9A3:2.5-inch:S64FNG0X103815 nvme1

nvme-subsys0 nqn.2019-10.com.kioxia:KCD6XLUL960G:53U0A029T5M8 nvme0

Device SN MN FR TxPort Address Slot Subsystem Namespaces

-------- -------------------- ---------------------------------------- -------- ------ -------------- ------ ------------ ----------------

nvme2 24034667BF24 Micron_7450_MTFDKBA480TFR E2MU200 pcie 0000:03:00.0 nvme-subsys2 nvme2n1

nvme1 S64FNG0X103815 SAMSUNG MZQL2960HCJR-00A07 GDC5A02Q pcie 0000:02:00.0 nvme-subsys1 nvme1n1

nvme0 53U0A029T5M8 KCD6XLUL960G 0107 pcie 0000:01:00.0 nvme-subsys0 nvme0n1

Device Generic NSID Usage Format Controllers

------------ ------------ ---------- -------------------------- ---------------- ----------------

/dev/nvme2n1 /dev/ng2n1 0x1 14,95 GB / 480,10 GB 512 B + 0 B nvme2

/dev/nvme1n1 /dev/ng1n1 0x1 0,00 B / 960,20 GB 512 B + 0 B nvme1

/dev/nvme0n1 /dev/ng0n1 0x1 0,00 B / 960,20 GB 512 B + 0 B nvme0

# lspci -vv -nn -s 0000:03:00.0|grep Lnk

 LnkCap: Port #0, Speed 16GT/s, Width x4, ASPM L0s L1, Exit Latency L0s <256ns, L1 unlimited

 LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+

 LnkSta: Speed 16GT/s, Width x4

 LnkCap2: Supported Link Speeds: 2.5-16GT/s, Crosslink- Retimer+ 2Retimers+ DRS-

 LnkCtl2: Target Link Speed: 16GT/s, EnterCompliance- SpeedDis-

 LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete+ EqualizationPhase1+

 LnkCtl3: LnkEquIntrruptEn- PerformEqu-

# lspci -vv -nn -s 0000:02:00.0|grep Lnk

 LnkCap: Port #0, Speed 16GT/s, Width x4, ASPM not supported

 LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+

 LnkSta: Speed 16GT/s, Width x4

 LnkCap2: Supported Link Speeds: 2.5-16GT/s, Crosslink- Retimer+ 2Retimers+ DRS-

 LnkCtl2: Target Link Speed: 16GT/s, EnterCompliance- SpeedDis-

 LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete+ EqualizationPhase1+

 LnkCtl3: LnkEquIntrruptEn- PerformEqu-

# lspci -vv -nn -s 0000:01:00.0|grep Lnk

 LnkCap: Port #0, Speed 16GT/s, Width x4, ASPM not supported

 LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+

 LnkSta: Speed 16GT/s, Width x4

 LnkCap2: Supported Link Speeds: 2.5-16GT/s, Crosslink- Retimer+ 2Retimers+ DRS-

 LnkCtl2: Target Link Speed: 16GT/s, EnterCompliance- SpeedDis-

 LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete+ EqualizationPhase1+

 LnkCtl3: LnkEquIntrruptEn- PerformEqu-

Installation for Testing

To conduct the tests, we installed Kubuntu on the M.2 NVMe drive.

Tests

We used the fio command to conduct tests, starting with sequential read, followed by random read.

Test 1

Kioxia HDS-TUN0-KCD6XLUL960G Kioxia CD6-R 960GB NVMe PCIe4x4 2.5" 15mm SIE 1DWPD 5YR.

fio seq read (Kioxia KCD6XLUL960G)

fio --filename=/dev/nvme0n1 --rw=read --direct=1 --bs=1M --ioengine=libaio --runtime=60 --numjobs=1 --time_based --group_reporting --name=seq_read --iodepth=16
seq_read: (g=0): rw=read, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=libaio, iodepth=16
fio-3.35

Starting 1 process
Jobs: 1 (f=1): [R(1)][100.0%][r=2852MiB/s][r=2851 IOPS][eta 00m:00s]
seq_read: (groupid=0, jobs=1): err= 0: pid=22195: Thu Mar 7 15:34:53 2024
 read: IOPS=2848, BW=2849MiB/s (2987MB/s)(167GiB/60006msec)
 slat (usec): min=61, max=991, avg=161.52, stdev=70.30
 clat (usec): min=2165, max=11294, avg=5453.75, stdev=103.34
 lat (usec): min=2291, max=12285, avg=5615.27, stdev=77.17
 clat percentiles (usec):
 | 1.00th=[ 5276], 5.00th=[ 5276], 10.00th=[ 5342], 20.00th=[ 5407],
 | 30.00th=[ 5407], 40.00th=[ 5407], 50.00th=[ 5473], 60.00th=[ 5473],
 | 70.00th=[ 5473], 80.00th=[ 5538], 90.00th=[ 5538], 95.00th=[ 5604],
 | 99.00th=[ 5669], 99.50th=[ 5669], 99.90th=[ 5669], 99.95th=[ 5669],
 | 99.99th=[ 6718]
 bw ( MiB/s): min= 2812, max= 2854, per=100.00%, avg=2851.14, stdev= 3.76, samples=119
 iops : min= 2812, max= 2854, avg=2851.14, stdev= 3.76, samples=119
 lat (msec) : 4=0.01%, 10=99.99%, 20=0.01%
 cpu : usr=0.74%, sys=54.06%, ctx=169635, majf=0, minf=4109
 IO depths : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
 submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
 complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
 issued rwts: total=170935,0,0,0 short=0,0,0,0 dropped=0,0,0,0
 latency : target=0, window=0, percentile=100.00%, depth=16
Run status group 0 (all jobs):
 READ: bw=2849MiB/s (2987MB/s), 2849MiB/s-2849MiB/s (2987MB/s-2987MB/s), io=167GiB (179GB), run=60006-60006msec
Disk stats (read/write):
 nvme0n1: ios=1364954/0, merge=0/0, ticks=7044197/0, in_queue=7044197, util=99.92%

HDS-SUN0-MZQL2960HCJRA7 Samsung PM9A3 960GB NVMe PCIe4x4 U.2 7mm 1DWPD 5YR SED Opal

fio seq read (Samsung MZQL2960HCJRA7)

fio --filename=/dev/nvme1n1 --rw=read --direct=1 --bs=1M --ioengine=libaio --runtime=60 --numjobs=1 --time_based --group_reporting --name=seq_read --iodepth=16
seq_read: (g=0): rw=read, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=libaio, iodepth=16
fio-3.35

Starting 1 process
Jobs: 1 (f=1): [R(1)][100.0%][r=6922MiB/s][r=6921 IOPS][eta 00m:00s]
seq_read: (groupid=0, jobs=1): err= 0: pid=22263: Thu Mar 7 15:36:19 2024
 read: IOPS=6913, BW=6913MiB/s (7249MB/s)(405GiB/60003msec)
 slat (usec): min=82, max=967, avg=112.97, stdev=15.55
 clat (usec): min=1730, max=11732, avg=2200.57, stdev=44.01
 lat (usec): min=1837, max=12700, avg=2313.54, stdev=45.45
 clat percentiles (usec):
 | 1.00th=[ 2147], 5.00th=[ 2180], 10.00th=[ 2180], 20.00th=[ 2180],
 | 30.00th=[ 2180], 40.00th=[ 2180], 50.00th=[ 2212], 60.00th=[ 2212],
 | 70.00th=[ 2212], 80.00th=[ 2212], 90.00th=[ 2212], 95.00th=[ 2212],
 | 99.00th=[ 2212], 99.50th=[ 2245], 99.90th=[ 2278], 99.95th=[ 2802],
 | 99.99th=[ 2933]
 bw ( MiB/s): min= 6604, max= 6924, per=100.00%, avg=6919.13, stdev=29.14, samples=119
 iops : min= 6604, max= 6924, avg=6919.13, stdev=29.14, samples=119
 lat (msec) : 2=0.05%, 4=99.94%, 10=0.01%, 20=0.01%
 cpu : usr=1.29%, sys=88.29%, ctx=373362, majf=0, minf=4110
 IO depths : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
 submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
 complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
 issued rwts: total=414807,0,0,0 short=0,0,0,0 dropped=0,0,0,0
 latency : target=0, window=0, percentile=100.00%, depth=16
Run status group 0 (all jobs):
 READ: bw=6913MiB/s (7249MB/s), 6913MiB/s-6913MiB/s (7249MB/s-7249MB/s), io=405GiB (435GB), run=60003-60003msec
Disk stats (read/write):
 nvme1n1: ios=3311288/0, merge=0/0, ticks=7132629/0, in_queue=7132629, util=99.92%

HDS-MMN-MTFDKBA480TFR1BC - Micron 7450 PRO 480GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC

fio seq read (Micron MTFDKBA480TFR1BC)

fio --filename=/dev/nvme2n1 --rw=read --direct=1 --bs=1M --ioengine=libaio --runtime=60 --numjobs=1 --time_based --group_reporting --name=seq_read --iodepth=16
seq_read: (g=0): rw=read, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=libaio, iodepth=16
fio-3.35

Starting 1 process
Jobs: 1 (f=1): [R(1)][100.0%][r=5042MiB/s][r=5042 IOPS][eta 00m:00s]
seq_read: (groupid=0, jobs=1): err= 0: pid=22330: Thu Mar 7 15:37:59 2024
 read: IOPS=5000, BW=5001MiB/s (5244MB/s)(293GiB/60002msec)
 slat (usec): min=64, max=848, avg=102.37, stdev=20.28
 clat (usec): min=967, max=11332, avg=3096.30, stdev=225.10
 lat (usec): min=1062, max=12181, avg=3198.67, stdev=224.67
 clat percentiles (usec):
 | 1.00th=[ 2933], 5.00th=[ 2999], 10.00th=[ 3032], 20.00th=[ 3032],
 | 30.00th=[ 3064], 40.00th=[ 3064], 50.00th=[ 3064], 60.00th=[ 3097],
 | 70.00th=[ 3097], 80.00th=[ 3097], 90.00th=[ 3130], 95.00th=[ 3163],
 | 99.00th=[ 4113], 99.50th=[ 4948], 99.90th=[ 5800], 99.95th=[ 6128],
 | 99.99th=[ 7439]
 bw ( MiB/s): min= 3970, max= 5044, per=100.00%, avg=5005.58, stdev=158.93, samples=119
 iops : min= 3970, max= 5044, avg=5005.58, stdev=158.93, samples=119
 lat (usec) : 1000=0.01%
 lat (msec) : 2=0.03%, 4=98.86%, 10=1.11%, 20=0.01%
 cpu : usr=0.65%, sys=58.17%, ctx=276012, majf=0, minf=4108
 IO depths : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
 submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
 complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
 issued rwts: total=300053,0,0,0 short=0,0,0,0 dropped=0,0,0,0
 latency : target=0, window=0, percentile=100.00%, depth=16
Run status group 0 (all jobs):
 READ: bw=5001MiB/s (5244MB/s), 5001MiB/s-5001MiB/s (5244MB/s-5244MB/s), io=293GiB (315GB), run=60002-60002msec
Disk stats (read/write):
 nvme2n1: ios=2396174/3, merge=0/1, ticks=7200202/0, in_queue=7200202, util=99.92%

Test 2

fio random read (Kioxia KCD6XLUL960G)

fio --filename=/dev/nvme0n1 --rw=randread --direct=1 --bs=1M --ioengine=libaio --runtime=60 --numjobs=1 --time_based --group_reporting --name=seq_read --iodepth=16
seq_read: (g=0): rw=randread, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=libaio, iodepth=16
fio-3.35

Starting 1 process
Jobs: 1 (f=1): [r(1)][100.0%][r=2853MiB/s][r=2852 IOPS][eta 00m:00s]
seq_read: (groupid=0, jobs=1): err= 0: pid=22407: Thu Mar 7 15:41:23 2024
 read: IOPS=2848, BW=2849MiB/s (2987MB/s)(167GiB/60006msec)
 slat (usec): min=111, max=948, avg=224.10, stdev=36.10
 clat (usec): min=2371, max=11871, avg=5390.63, stdev=66.05
 lat (usec): min=2526, max=12819, avg=5614.72, stdev=57.78
 clat percentiles (usec):
 | 1.00th=[ 5276], 5.00th=[ 5342], 10.00th=[ 5342], 20.00th=[ 5342],
 | 30.00th=[ 5342], 40.00th=[ 5407], 50.00th=[ 5407], 60.00th=[ 5407],
 | 70.00th=[ 5407], 80.00th=[ 5407], 90.00th=[ 5473], 95.00th=[ 5473],
 | 99.00th=[ 5473], 99.50th=[ 5473], 99.90th=[ 5538], 99.95th=[ 5538],
 | 99.99th=[ 6783]
 bw ( MiB/s): min= 2808, max= 2854, per=100.00%, avg=2851.13, stdev= 4.24, samples=119
 iops : min= 2808, max= 2854, avg=2851.14, stdev= 4.24, samples=119
 lat (msec) : 4=0.01%, 10=99.99%, 20=0.01%
 cpu : usr=0.80%, sys=74.14%, ctx=168755, majf=0, minf=4106
 IO depths : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
 submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
 complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
 issued rwts: total=170938,0,0,0 short=0,0,0,0 dropped=0,0,0,0
 latency : target=0, window=0, percentile=100.00%, depth=16
Run status group 0 (all jobs):
 READ: bw=2849MiB/s (2987MB/s), 2849MiB/s-2849MiB/s (2987MB/s-2987MB/s), io=167GiB (179GB), run=60006-60006msec
Disk stats (read/write):
 nvme0n1: ios=1364996/0, merge=0/0, ticks=6979131/0, in_queue=6979131, util=99.91%

fio random read (Samsung MZQL2960HCJRA7)

fio --filename=/dev/nvme1n1 --rw=randread --direct=1 --bs=1M --ioengine=libaio --runtime=60 --numjobs=1 --time_based --group_reporting --name=seq_read --iodepth=16
seq_read: (g=0): rw=randread, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=libaio, iodepth=16
fio-3.35

Starting 1 process
Jobs: 1 (f=1): [r(1)][100.0%][r=6922MiB/s][r=6921 IOPS][eta 00m:00s]
seq_read: (groupid=0, jobs=1): err= 0: pid=22522: Thu Mar 7 15:42:48 2024
 read: IOPS=6913, BW=6913MiB/s (7249MB/s)(405GiB/60003msec)
 slat (usec): min=86, max=958, avg=109.43, stdev=13.04
 clat (usec): min=1711, max=11925, avg=2204.04, stdev=43.59
 lat (usec): min=1853, max=12884, avg=2313.47, stdev=45.94
 clat percentiles (usec):
 | 1.00th=[ 2147], 5.00th=[ 2180], 10.00th=[ 2180], 20.00th=[ 2180],
 | 30.00th=[ 2212], 40.00th=[ 2212], 50.00th=[ 2212], 60.00th=[ 2212],
 | 70.00th=[ 2212], 80.00th=[ 2212], 90.00th=[ 2212], 95.00th=[ 2212],
 | 99.00th=[ 2212], 99.50th=[ 2245], 99.90th=[ 2376], 99.95th=[ 2802],
 | 99.99th=[ 2835]
 bw ( MiB/s): min= 6608, max= 6924, per=100.00%, avg=6919.16, stdev=28.78, samples=119
 iops : min= 6608, max= 6924, avg=6919.16, stdev=28.78, samples=119
 lat (msec) : 2=0.05%, 4=99.94%, 10=0.01%, 20=0.01%
 cpu : usr=1.50%, sys=86.22%, ctx=382785, majf=0, minf=4107
 IO depths : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
 submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
 complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
 issued rwts: total=414816,0,0,0 short=0,0,0,0 dropped=0,0,0,0
 latency : target=0, window=0, percentile=100.00%, depth=16
Run status group 0 (all jobs):
 READ: bw=6913MiB/s (7249MB/s), 6913MiB/s-6913MiB/s (7249MB/s-7249MB/s), io=405GiB (435GB), run=60003-60003msec
Disk stats (read/write):
 nvme1n1: ios=3311521/0, merge=0/0, ticks=7133786/0, in_queue=7133786, util=99.91%

fio random read (Micron MTFDKBA480TFR1BC)

fio --filename=/dev/nvme2n1 --rw=randread --direct=1 --bs=1M --ioengine=libaio --runtime=60 --numjobs=1 --time_based --group_reporting --name=seq_read --iodepth=16
seq_read: (g=0): rw=randread, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=libaio, iodepth=16
fio-3.35

Starting 1 process
Jobs: 1 (f=1): [r(1)][100.0%][r=5043MiB/s][r=5043 IOPS][eta 00m:00s]
seq_read: (groupid=0, jobs=1): err= 0: pid=22590: Thu Mar 7 15:44:09 2024
 read: IOPS=5037, BW=5037MiB/s (5282MB/s)(295GiB/60002msec)
 slat (usec): min=66, max=920, avg=105.58, stdev=25.21
 clat (usec): min=1572, max=12070, avg=3069.73, stdev=110.75
 lat (usec): min=1687, max=12816, avg=3175.32, stdev=106.67
 clat percentiles (usec):
 | 1.00th=[ 2835], 5.00th=[ 2933], 10.00th=[ 2966], 20.00th=[ 2999],
 | 30.00th=[ 3032], 40.00th=[ 3064], 50.00th=[ 3064], 60.00th=[ 3097],
 | 70.00th=[ 3097], 80.00th=[ 3130], 90.00th=[ 3130], 95.00th=[ 3195],
 | 99.00th=[ 3490], 99.50th=[ 3589], 99.90th=[ 3785], 99.95th=[ 3851],
 | 99.99th=[ 4113]
 bw ( MiB/s): min= 4930, max= 5046, per=100.00%, avg=5041.65, stdev=10.39, samples=119
 iops : min= 4930, max= 5046, avg=5041.65, stdev=10.39, samples=119
 lat (msec) : 2=0.01%, 4=99.98%, 10=0.02%, 20=0.01%
 cpu : usr=0.81%, sys=59.64%, ctx=247929, majf=0, minf=4106
 IO depths : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
 submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
 complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
 issued rwts: total=302253,0,0,0 short=0,0,0,0 dropped=0,0,0,0
 latency : target=0, window=0, percentile=100.00%, depth=16
Run status group 0 (all jobs):
 READ: bw=5037MiB/s (5282MB/s), 5037MiB/s-5037MiB/s (5282MB/s-5282MB/s), io=295GiB (317GB), run=60002-60002msec
Disk stats (read/write):
 nvme2n1: ios=2413346/154, merge=0/29, ticks=7210715/18, in_queue=7210733, util=99.92%

You can find more information about the server, the conducted tests, and their results on our YouTube channel.

1/5 Unboxing:

2/4 First boot

3/5 Power consumption: IDLE and STRESS

4/5 Performance Tests of AMD Epyc Rome 7542 32C/64T

5/5 Performance Tests of NVMe

Related pages:

Tests of a Budget 1U AMD Epyc Server for 4 NVMe Gen 4.0 Drives (Will the BPN-SAS3-815TQ-N4 Support NVMe Gen 4.0 Drives?)

Categories

Chat - tawk.to

Analytics & marketing - Google Analytics
